Product Summary
The PM50RVA120 is a MITSUBISHI INTELLIGENT POWER MODULE. It is designed for power switching applications operating at frequencies to 20kHz. Built-in control circuits provide optimum gate drive and protection for the IGBT and free-wheel diode power devices. The applications of the PM50RVA120 are Inverters, UPS, Motion/Servo Control, Power Supplies.
Parametrics
PM50RVA120 absolute maximum ratings: (1)Power Device Junction Temperature Tj: -20℃ to 150℃; (2)Storage Temperature Tstg: -40℃ to 125℃; (3)Case Operating Temperature TC: -20℃ to 100℃; (4)Mounting Torque, M5 Mounting Screws: 2.5 ~3.5N.m; (5)Mounting Torque, M8 Main Terminal Screws: 2.5 ~3.5N.m; (6)Module Weight (Typical): 560 Grams; (7) Supply Voltage (Applied between P - N) VCC(surge): 1000 Volts; (8)Supply Voltage Protected by OC and SC (VD = 13.5 - 16.5V,Inverter Part) VCC(prot.): 800 Volts; (9)Isolation Voltage (Main Terminal to Baseplate, AC 1 min.) Viso: 2500 Vrms.
Features
PM50RVA120 features: (1)Complete Output Power Circuit; (2)Gate Drive Circuit; (3)Protection Logic: Short Circuit, Over Temperature, Under Voltage.

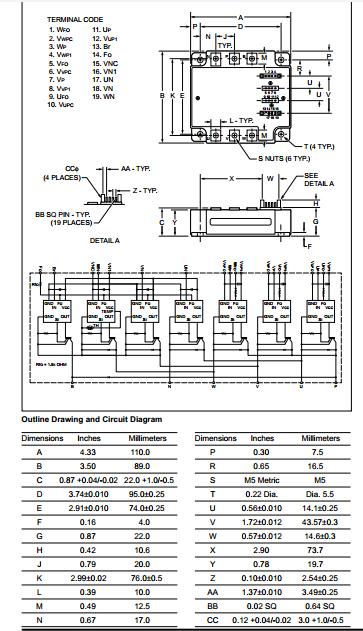

Diagrams
Image | Part No | Mfg | Description | ![]() |
Pricing (USD) |
Quantity | ||||||||||||
---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
![]() |

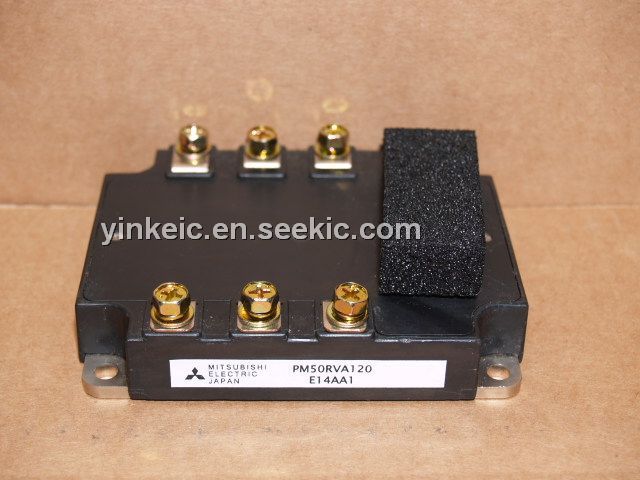

![]() PM50RVA120 |
![]() |
![]() MOD IPM 7PAC 1200V 50A |
![]() Data Sheet |
![]()
|
|
||||||||||||
