Product Summary

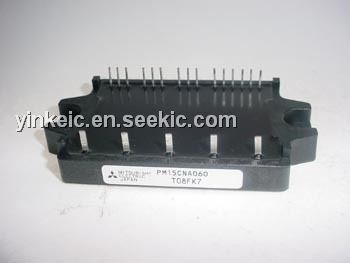

The PM15CNA060 is a MITSUBISHI INTELLIGENT POWER MODULE. The applications of the PM15CNA060 are General purpose inverter, servo drives and other motor controlers.

Parametrics

PM15CNA060 absolute maximum ratings: (1)Collector-Emitter Voltage VCES (VD=15V, VCIN=15V): 600V; (2)Collector Current ±IC (TC=25℃): 15A; (3)Collector Current (Peak) ±ICP (TC=25℃): 30A; (4)Collector Dissipation PC (TC=25℃):43W; (5)Junction Temperature Tj: -20℃ to +125℃.

Features

PM15CNA060 features: (1)3 phase IGBT (15A/600V) inverter output; (2)Monolithic gate drive & protection logic circuit; (3)Protection logic: Over circuit (OC), Short circuit (SC), Over temperature (OT), Under voltage lock-out (UV).

Diagrams

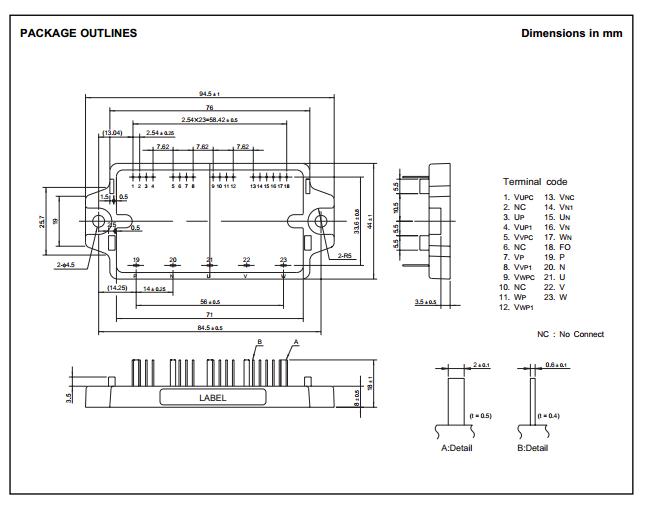

PM15CNA060 dimension figure
