Product Summary

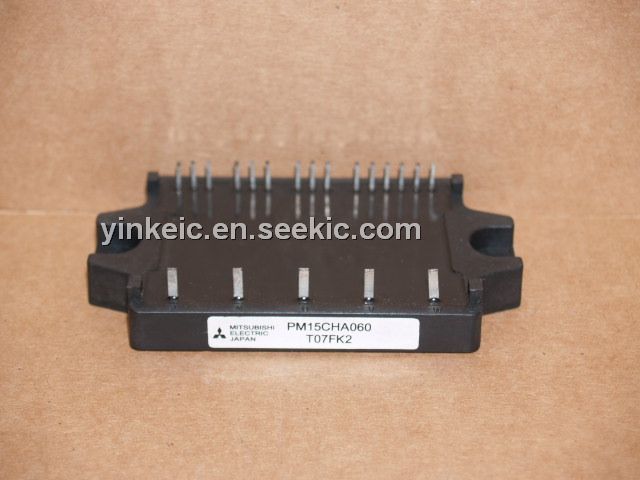

The PM15CHA060 is a MITSUBISHI INTELLIGENT POWER MODULE. It is designed for applications requiring a high frequency (20kHz) output inverter. The module is isolated from the baseplate, consisting of comlete drive, control and protectin circuitry for the IGBT inverter. The applications of the PM15CHA060 are Inverters, Small UPS, Motion/Servo Control, Power Supplies.
Parametrics
PM15CHA060 absolute maximum ratings: (1)Power Device Junction Temperature Tj: -20℃ to 150℃; (2)Storage Temperature Tstg: -40℃ to 125℃; (3)Case Operating Temperature TC: -20℃ to 100℃; (4)Mounting Torque, M5 Mounting Screws: 17 Kg.cm; (5)Module Weight (Typical): 90 Grams; (6)Supply Voltage Protected by OC and SC (VD = 13.5 - 16.5V,Inverter Part) VCC(prot.): 400 Volts; (7Isolation Voltage (Main Terminal to Baseplate, AC 1 min.) Viso: 2500 Vrms.
Features
PM15CHA060 features: (1)Complete Output Power Circuit; (2)Gate Drive Circuit; (3)Protection Logic: Short Circuit, Over Current, Over Temperature, Under Voltage.

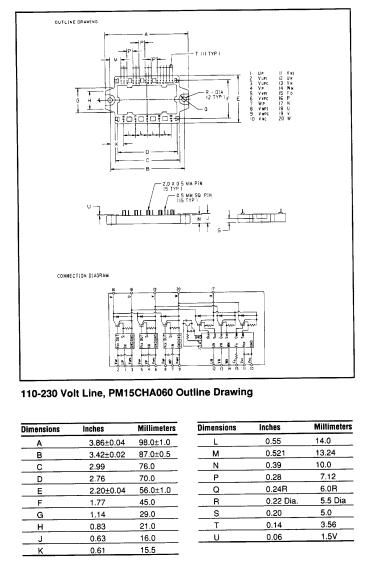

Diagrams
