PM100RSE120

Mitsubishi intelligent power module,1200V, 100A, IGBT

Rated 5 Rating 5 | reviews | Write a review

Price:: US $48.00~50.00 / piece [Get Latest Price]

Reference price:

Qty (lots)	Price/lot
1 ~ 10 :	50.00 / Piece
11 ~ 20 :	49.00 / Piece
21 ~ 30 :	48.00 / Piece

PartNumber:: PM100RSE120

Brand:: MITSUBISHI - MITSUBISHI | D/C: 11+

Availability:: Supply Ability: 1/Day Can Ship Immediately
Delivery: 10-15 Business Days (ships out within 3 Business days)

Quantity:: piece

Total Price:: US $0

Place Order via Escrow Service

Not exactly what you want? Post a quick Buying Request!

Sold By

Ms. Nici's store

(Hong Kong)

100% Positive feedback

Detailed seller ratings

Visit Store

Contact Now

Esrcow Service

Place orders confidently and securely via it

Safe payments
Quick and easy transactions
Free service charges

Learn More >>

Previous Next

Products Upload time: 2013-04-15

From Other Seller

Part Number:PM100RSE120
US $48.00 - 50.00
PM100RSE120

US $48.00 - 50.00 / Piece
(0) Remove
Quantity:

piece

Product Summary

The pm100rse120 is a Mitsubishi intelligent power module. The pm100rse120 is in flat-base type insulated package. Applications of the pm100rse120 include: General purpose inverter, servo drives and other motor controls.

Parametrics

pm100rse120 absolute maximum ratings: (1) Collector-Emitter Voltage VCES: 1200V (VD=15V, VCIN=15V) ; (2) Collector Current ±IC: 100A (TC=25°C) ; (3) Collector Current (Peak) ±ICP: 200A (Tc=25°C) ; (4) Collector Dissipation Pc: 595W (Tc=25°C) ; (5) Junction Temperature Tj: -20 to +150°C.

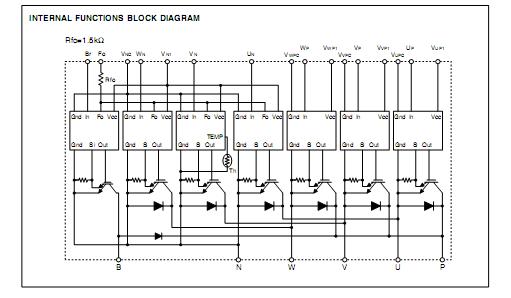

Features

pm100rse120 features: (1) Adopting new 4th generation planar IGBT chip, which performance is improved by 1m fine rule process; (2) Using new Diode which is designed to get soft reverse recovery characteristics.; (3) 100A, 1200V Current-sense IGBT for 15kHz switching; (4) 50A, 1200V Current-sense regenerative brake IGBT; (5) Monolithic gate drive & protection logic; (6) Detection, protection & status indication circuits for over-current, short-circuit, over-temperature & under-voltage; (7) Acoustic noise-less 18.5/22kW class inverter application.
