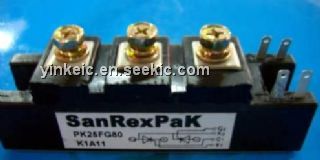

The pk25fg80 is a power thyristor/diode module. The pk25fg80 is designed for various rectifier circuit and power control. For your circuit application, following internal connections and wide voltage ratings of the pk25fg80 up to 1600V are available and electrically isolated mounting base make your mechanical design easy. Applications of the pk25fg80 include: Various rectifiers, AC/DC motor drives, Heater controls, Light dimmers and Static switches
Parametrics
pk25fg80 absolute maximum ratings: (1) Repetitive Peak Reverse Voltage VRRM: 800V; (2) Non-Repetitive Peak Reverse Voltage VRSM: 960V; (3) Repetitive Peak off-state Voltage VDRM: 800V; (4) Average On-state Current IT (AV) : 25A (Single phase, half wave, 180° conduction, TC=81°C) ; (5) R.M.S. On-state Current IT(RMS) : 39A (Single phase, half wave, 180° conduction, TC=81°C; (6) Surge On-state Current ITSM: 640/700A (1/2 Cycle, 50/60H , Peak Value, non-repetitive) ; (7) Peak Gate Power Dissipation PGM: 10W; (8) Average Gate Power Dissipation PG (AV) : 1W; (9) Peak Gate Current IFGM: 3A; (10) Operating Junction Temperature Tj: -40 to +125°C; (11) Storage Temperature Tstg: -40 to +125°C; (12) Peak Gate Voltage (Reverse) VRGM: 5V.
Features
pk25fg80 features: (1) IT (AV), IT (RMS) 39A, ITSM 700A; (2) di/dt 100A/μs; (3) dv/dt 1000V/μs.
