Product Summary

The mg50q2yk1 is a CJ1 programmable controller. The mg50q2yk1 is designed for use in various types of motor control and other high power switching applications and consists of insulated type darlingtion transistor. The electrodes of the mg50q2yk1 is fully isolated from heat sink. Single ended electrode construction of the mg50q2yk1 is used to greatly simplift mounting. A wide variety of the mg50q2yk1 is available with current capability up to 400A and voltage rating up to 1400V.

Parametrics

mg50q2yk1 absolute maximum ratings: (1) VCBO: 1200V; (2) VCEX (sus) : 1200V; (3) VCEO (sus) : 900V; (4) VEBO: 7V; (5) Ic (DC) : 50A; (6) ICP (1msec) : 100A; (7) IF (DC) : 50A; (8) IFM (1msec) : 100A; (9) IB: 5A; (10) PC ( Tc 25°C) : 350W.

Features

mg50q2yk1 features: (1) electrodes are isolated from the heat sink (2500V AC) ; (2) high DC current gain (hFE) (80 or 100 MIN) ; (3) low saturation voltage (2 or 2.5V maximum) ; (4) wide safe operatinf area.

Diagrams

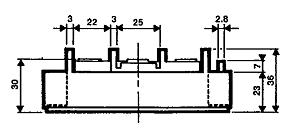

MG50Q2YK1 Dimension
