Product Summary

The MG50J2YS40 is a High Power Switching Application.

Parametrics

MG50J2YS40 absolute maximum ratings: (1)Collector-emitter voltage VCES: 600V; (2)Gate-emitter voltage VGES: ±20V; (3)Collector Current IC: 50A; (4)Forward Current IF: 50A; (5)Collector power dissipation PC: 250W; (6)Junction temperature Tj: 150℃; (7)Storage temperature TSTG: -40℃ to +125℃; (8)Isolation Voltage VIsol: 2500V(AC 1min).

Features

MG50J2YS40 features: (1)High input impedance; (2)High speed: tf = 0.35μs (Max.) trr = 0.15μs(Max.); (3)Low saturation voltage: VCE (sat) = 3.5V (Max.); (4)Enhancement-mode; (5)Includes a complate half bridge in one package; (6)The electrodes are isolated from case.

Diagrams

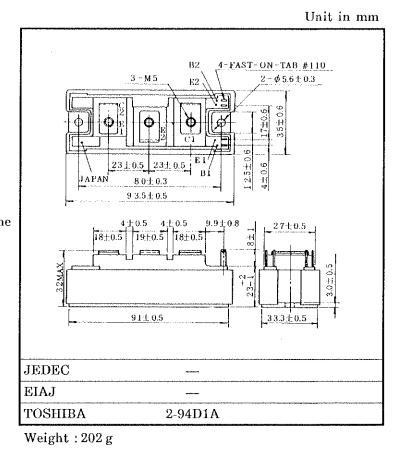

MG50J2YS40 dimension figure
