Product Summary

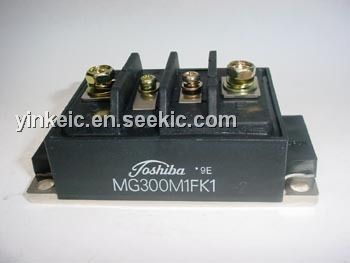

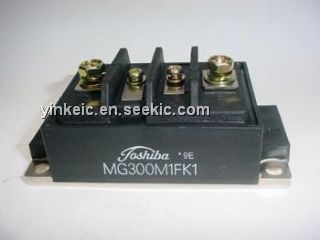

The MG300M1FK1 is a TOSHIBA GTR Module. It is a High Power Switching Application.

Parametrics

MG300M1FK1 absolute maximum ratings: (1)Collector-Base voltage VCBO: 1000V; (2)Emitter-Base voltage VEBO: 7V; (3)Collector Current IC: 300A; (4)Collector power dissipation (Tc=25℃) PC: 1600W; (5)Junction temperature Tj: 150℃; (6)Storage temperature TSTG: -40℃ to +125℃; (7)Isolation Voltage VIsol: 2500V(AC 1min); (8)Screw Torque: 30 Kg.cm.

Features

MG300M1FK1 features: (1)The collector is isolated from case; (2)With Built-in Free Weeling Diodes; (3)High DC Current Gain: hFE = 100 (Min.) (IC=300A); (4)Low Satulation Voltage: VCE (sat)=2.5V(Max.) (IC=300A); (5)Excellent Collector Balanceby Direct Parallel Connection of Each All Terminals.

Diagrams

MG300M1FK1 dimension figure
