Product Summary

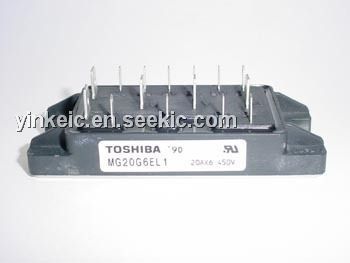

The MG20G6EL1 is a TOSHIBA GTR Module. It is a High Power Switching Application.

Parametrics

MG20G6EL1 absolute maximum ratings: (1)Collector-Base voltage VCBS: 600V; (2)Emitter-Base voltage VEBO: 6V; (3)Collector Current IC: 20A; (4)Collector power dissipation (Tc=25℃) PC: 125W; (5)Junction temperature Tj: 150℃; (6)Storage temperature TSTG: -40℃ to +125℃; (7)Isolation Voltage VIsol: 2500V(AC 1min).

Features

MG20G6EL1 features: (1)The collector is isolated from case; (2)4 or 6 Darlington Transistor including Free Weeling Diodes are Built-in to 1 package; (3)High DC Current Gain: hFE = 100 (Min.) (IC=20A); (4)Low Satulation Voltage: VCE (sat)=24(Max.) (IC=20A).

Diagrams

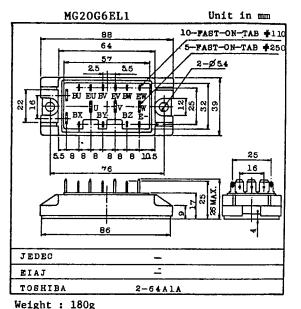

MG20G6EL1 dimension figure
