Product Summary

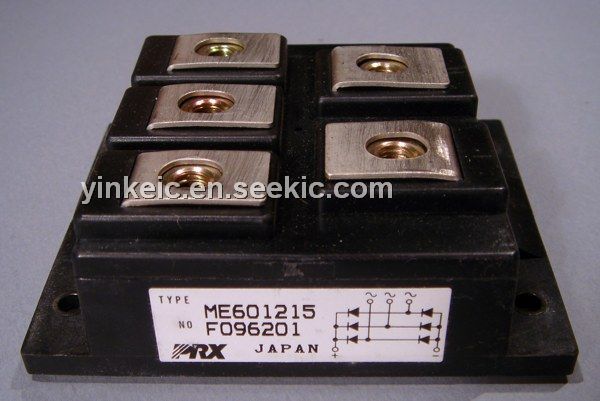

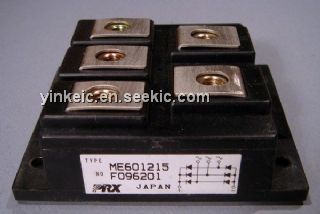

The ME601215 is a Three-Phase Diode Bridge Module. It is designed for use in three-phase bridge applications. The modules are isolated consisting of six rectifier diodes. The applications of the ME601215 are Inverters, DC Power Supplies, AC Motor Control Front End.
Parametrics
ME601215 absolute maximum ratings: (1)Peak Reverse Blocking Voltage VRRM: 1200V; (2)Transient Peak Reverse Blocking Voltage (Non-Repetitive), t<5ms VRSM: 1350V; (3)DC Output Current, TC=97℃ IO: 150A; (4)Storage temperature TSTG: -40℃to +125℃; (5)Operating Temperature Tj: -40℃ to +125℃; (6)Module Weight (Typical): 405g.
Features
ME601215 features: (1)Isolated Mounting; (2)Planar Chips.

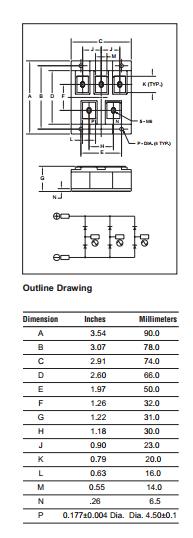

Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
 ME601215 |
|
DIODE MOD 3PH BRDG 1200V 150A |
Data Sheet |
|
|
||||||||||||||||
| Image | Part No | Mfg | Description | |
Pricing (USD) |
Quantity | ||||||||||||||||
|
ME600815 |
|
DIODE MOD 3PH BRDG 800V 150A |
Data Sheet |
|
|
||||||||||||||||
|
ME601215 |
|
DIODE MOD 3PH BRDG 1200V 150A |
Data Sheet |
|
|
||||||||||||||||
 |
ME601615 |
|
DIODE MOD 3PH BRDG 1600V 150A |
Data Sheet |
|
|
||||||||||||||||
