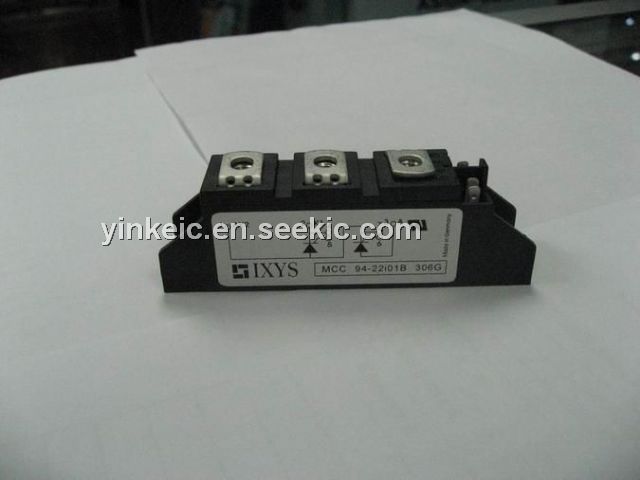

The MCC94-22 is a High Voltage Thyristor Module. The applications of the MCC94-22 are DC motor control, Softstart AC motor controller, Light, heat and temperature control.
Parametrics
MCC94-22 absolute maximum ratings: (1)ITRMS, IFRMS(TVJ=TVJM): 180A; (2)PGM(TVJ=TVJM, tP=30μs): 10W; (IT= ITAVM, tP=300μs): 5W; (3)Storage temperature TSTG: -40℃ to +125℃; (4)IRRM, IDRM(TVJ=TVJM; VR=VRRM; VD=VDRM): 15mA; (5)VT, VF(IT, IF=300 A; TVJ=25℃): 1.74V; (6)VT0 For power-loss calculations only (TVJ=TVJM): 0.85V; (7)rT: 3.2 mΩ; (8)dS Creeping distance on surface: 12.7mm; (9)dA Creepage distance in air: 9.6mm; (10)a Maximum allowable acceleration: 50 m/s2.
Features
MCC94-22 features: (1)International standard package JEDEC TO-240 AA; (2)Direct copper bonded Al2O3-ceramic with copper base plate; (3)Planar passivated chips; (4)Isolation voltage 3600 V; (5)UL registered E 72873; (6) Gate-cathode twin pins for version 1B.
