Product Summary

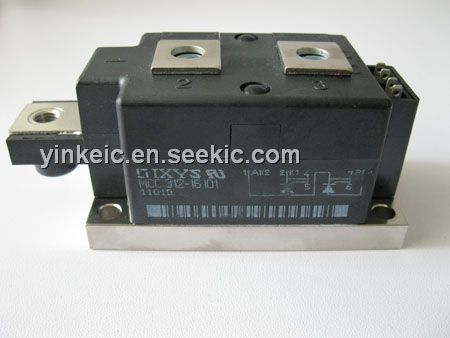

The MCC312-16i01 is a Thyristor Module. The applications of the MCC312-16i01 are pplications, Motor control, softstarter, Power converter, Heat and temperature control for industrial furnaces and chemical processes, Lighting control, Solid state switches.
Parametrics
MCC312-16i01 absolute maximum ratings: (1)ITRMS, IFRMS(TVJ=TVJM): 500A; (2)PGM(TVJ=TVJM, tP=30μs): 120W; (IT= ITAVM, tP=500μs): 60W; (3)Storage temperature TSTG: -40℃ to +125℃; (4)IRRM, IDRM(TVJ=TVJM; VR=VRRM; VD=VDRM): 40mA; (5)VT, VF(IT, IF=600 A; TVJ=25℃): 1.32V; (6)VT0 For power-loss calculations only (TVJ=140℃): 0.8V; (7)rT: 0.68 mΩ; (8)dS Creeping distance on surface: 12.7mm; (9)dA Creepage distance in air: 9.6mm; (10)a Maximum allowable acceleration: 50 m/s2.
Features
MCC312-16i01 features: (1)International standard package; (2)Direct copper bonded Al2O3-ceramic with copper base plate; (3)Planar passivated chips; (4)Isolation voltage 3600 V; (5)UL registered E 72873; (6)Keyed gate/cathode twin pins.

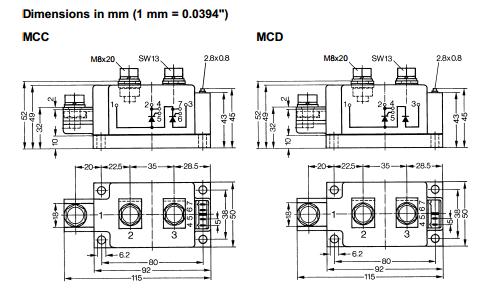

Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||
|---|---|---|---|---|---|---|---|---|---|---|
 |
 MCC312-16I01 |
Other |
|
Data Sheet |
Negotiable |
|
||||
