Product Summary

The MCC312-16101 is a Thyristor. The applications of the CM30MD1-12H are Motor control, softstarter, Power converter, Heat and temperature control for industrial furnaces and chemical processes, Lighting control, Solid state switches.

Parametrics

MCC312-16101 absolute maximum ratings: (1)ITRMS,IFRMS(TVJ=TVJM): 520A; (2)ITSM,IFSM(TVJ=45℃;t=10ms(50Hz): 9200A; (3)PGM(TVJ=TVJM,tP=30μs): 120W; (4)VRGM: 10V; (5)TSTG: -40℃ +125℃.

Features

MCC312-16101 features: (1)International standard package; (2)Direct copper bonded Al2O3-ceramic with copper base plate; (3)Planar passivated chips; (4)Isolation voltage 3600V; (5)UL registered E 72873; (6)Keyed gate/cathode twin pins.

Diagrams

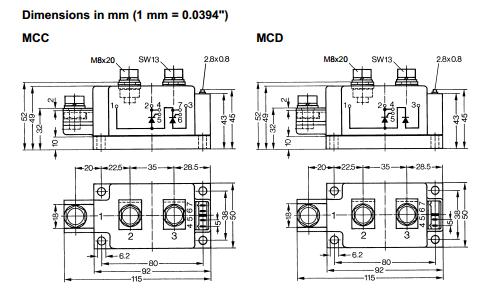

MCC312-16101 dimension figure
