Product Summary

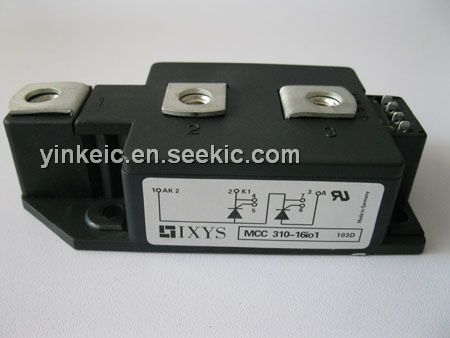

The MCC310-16iO1 is a Thyristor/Diode Module. The applications of the MCC310-16iO1 are Motor control, softstarter, Power converter, Heat and temperature control for industrial furnaces and chemical processes, Lighting control, Solid state switches.

Parametrics

MCC310-16iO1 absolute maximum ratings: (1)ITRMS,IFRMS(TVJ=TVJM): 520A; (2)ITSM,IFSM(TVJ=45℃;t=10ms(50Hz): 9200A; (3)PGM(TVJ=TVJM,tP=30μs): 120W; (4)VRGM: 10V; (5)Tvj: -40℃ +140℃; (5)Tstg: -40℃ +125℃

Features

MCC310-16iO1 features: (1)International standard package; (2)Direct copper bonded Al2O3-ceramic with copper base plate; (3)Planar passivated chips; (4)Isolation voltage 3600 V; (5)UL registered E 72873; (6)Keyed gate/cathode twin pins.

Diagrams

MCC310-16iO1 dimension figure

Image Part No Mfg Description Data Sheet Download Pricing
(USD)
Quantity
MCC310-16io1
MCC310-16io1

Ixys

Discrete Semiconductor Modules 310 Amps 1600V

Data Sheet

Negotiable
Image Part No Mfg Description Data Sheet Download Pricing
(USD)
Quantity
MCC310
MCC310

Other


Data Sheet

Negotiable
MCC310-08io1
MCC310-08io1

Ixys

Discrete Semiconductor Modules 310 Amps 800V

Data Sheet

Negotiable
MCC310-12io1
MCC310-12io1

Ixys

Discrete Semiconductor Modules 310 Amps 1200V

Data Sheet

Negotiable
MCC310-14io1
MCC310-14io1

Ixys

Discrete Semiconductor Modules MOD THYRISTOR DUAL 1400V 320 AMP

Data Sheet

Negotiable
MCC310-16io1
MCC310-16io1

Ixys

Discrete Semiconductor Modules 310 Amps 1600V

Data Sheet

Negotiable
MCC310-18io1
MCC310-18io1

Ixys

Discrete Semiconductor Modules 310 Amps 1800V

Data Sheet

Negotiable
