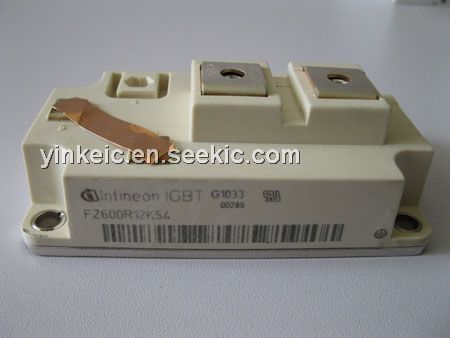

Product Summary

The FZ600R12KS4 is a C-series module with the fast IGBT2 for high-frequency switching.

Parametrics

FZ600R12KS4 absolute maximum ratings: (1)Collector-emitter Voltage(Tvj=25℃): 1200V ; (2)DC-collector current: Tc=60℃, Tvj=150℃, Ic nom=600A; Tc=25℃, Tvj=150℃, Ic nom= 700A; (3)Repetitive Reak Current(tp=1ms): 1200A; (4)Total Power Dissipation(Tc=25℃, Tvj=150℃): 3900W ; (5)Gate-emitter Peak Voltage: +/-20V.

Features

FZ600R12KS4 features: (1)Collector-emitter saturation voltage(IC=600A, VGE=15V, Tvj=25℃): 3.20-3.75V; (2)Gate threshold voltage(IC=24.0mA, VCE=VGE, Tvj=25℃): 4.5-6.5V; (3)Gate charge(VGE=-15V...+15V): 6.30μC; (4)Internal gate resistor(Tvj=25℃): 0.5Ω; (5)Input capacitance(f=1MHz, Tvj=25°C, VCE=25V, VGE=0V): 39.0nF; (6)Collector-emitter cut-off current(VCE=1200 V, VGE=0V, Tvj=25°C): 5.0 mA.

Diagrams

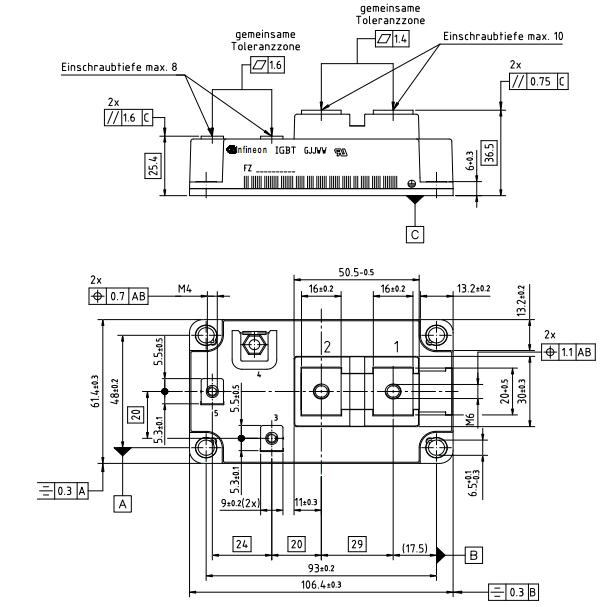

FZ600R12KS4 dimension figure

Image Part No Mfg Description Data Sheet Download Pricing
(USD)		 Quantity
FZ600R12KS4
FZ600R12KS4
Infineon Technologies
IGBT Modules N-CH 1.2KV 700A
Data Sheet
0-6: $115.87
6-10: $104.28
