Product Summary

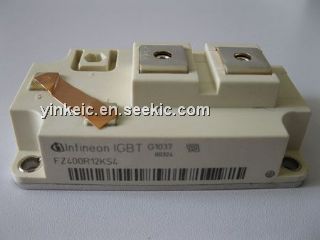

FZ400R12KS4 is an IGBT Wechselrichter / IGBT Inverter.

Parametrics

FZ400R12KS4 absolute maximum ratings: (1)Collector-emitter Voltage(Tvj=25℃): 1200V ; (2)DC-collector current: Tc=70℃, Tvj=150℃, Ic nom=400A; Tc=25℃, Tvj=150℃, Ic nom= 510A; (3)Repetitive Reak Current (tp=1ms): 800A; (4)Total Power Dissipation(Tc=25℃,Tvj=150℃): 2500W ; (5)Gate-emitter Peak Voltage: +/-20V.

Features

FZ400R12KS4 features: (1)Collector-emitter saturation voltage (IC=400A, VGE=15V, Tvj=25℃): 3.20-3.70V; (2)Gate threshold voltage (IC=16.00mA, VCE=VGE, Tvj=25℃): 4.5-6.5V; (3)Gate charge (VGE=-15V...+15V): 4.20μC; (4)Internal gate resistor (Tvj=25℃): 1.3Ω; (5)Input capacitance (f=1MHz, Tvj=25°C, VCE=25V, VGE=0V): 26.0nF; (6)Collector-emitter cut-off current (VCE=1200 V, VGE=0V, Tvj=25°C): 5.0 mA.

Diagrams

FZ400R12KS4 dimension figure

Image Part No Mfg Description Data Sheet Download Pricing
(USD)		 Quantity
FZ400R12KS4
FZ400R12KS4
Infineon Technologies
IGBT Modules IGBT-Module/ IGBT-inverter
Data Sheet
0-6: $94.97
6-10: $85.48
