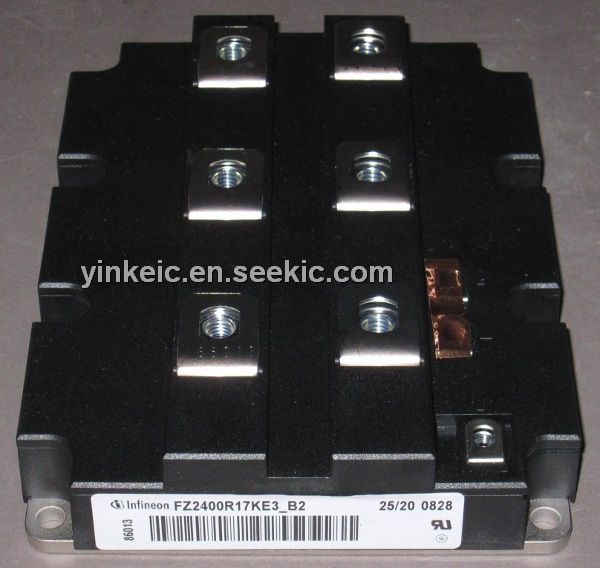

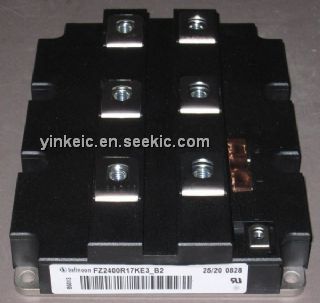

Product Summary

The FZ2400R17KE3_B2 is an IGBT Wechselrichter / IGBT Inverter.

Parametrics

FZ2400R17KE3_B2 absolute maximum ratings: (1)Collector-emitter Voltage(Tvj=25℃): 1700V ; (2)DC-collector current: Tc=80℃, Tvj=150℃, Ic nom=2400A; Tc=25℃, Tvj=150℃, Ic nom= 3600A; (3)Repetitive Reak Current(tp=1ms): 4800A; (4)Total Power Dissipation(Tc=25℃, Tvj=150℃): 15.5kW ; (5)Gate-emitter Peak Voltage: +/-20V.

Features

FZ2400R17KE3_B2 features: (1)Collector-emitter saturation voltage(IC=2400A, VGE=15V, Tvj=25℃): 2.00-2.45V; (2)Gate threshold voltage(IC=96. 0mA, VCE=VGE, Tvj=25℃): 5.2-6.4V; (3)Gate charge(VGE=-15V...+15V): 28.0μC; (4)Internal gate resistor(Tvj=25℃): 0.6Ω; (5)Input capacitance(f=1MHz, Tvj=25°C, VCE=25V, VGE=0V): 215nF; (6)Collector-emitter cut-off current(VCE=1700 V, VGE=0V, Tvj=25℃): 5.0 mA.

Diagrams

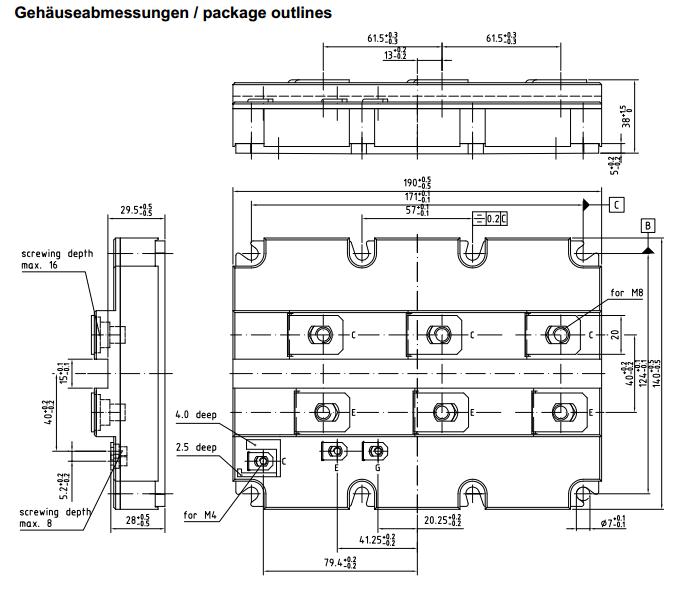

FZ2400R17KE3_B2 dimension figure
