Product Summary

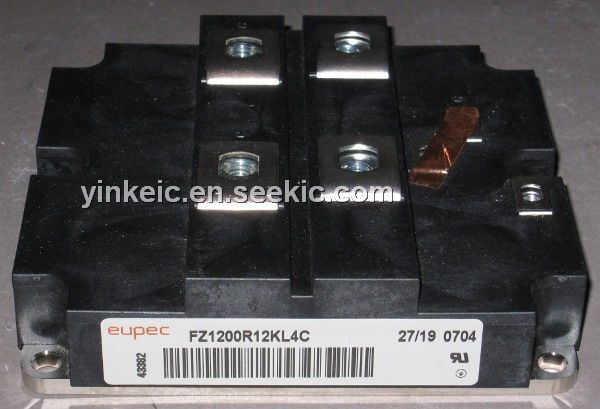

FZ1200R12KL4C is an IGBT Wechselrichter / IGBT Inverter.

Parametrics

FZ1200R12KL4C absolute maximum ratings: (1)Collector-emitter Voltage(Tvj=25℃): 1200V ; (2)DC-collector current: Tc=80℃, Ic nom=1200A; Tc=25℃, Ic nom=1900A; (3)Repetitive Reak Current (tp=1ms, Tc=80℃): 2400A; (4)Total Power Dissipation(Tc=25℃): 7800W ; (5)Gate-emitter Peak Voltage: +/-20V.

Features

FZ1200R12KL4C features: (1)Collector-emitter saturation voltage (IC=1200A, VGE=15V, Tvj=25℃): 2.10-2.60V; (2)Gate threshold voltage (IC=48.00mA, VCE=VGE, Tvj=25℃): 4.5-6.5V; (3)Gate charge (VGE=-15V...+15V): 13.0μC; (4)Internal gate resistor (Tvj=25℃): 1.3Ω; (5)Input capacitance (f=1MHz, Tvj=25°C, VCE=25V, VGE=0V): 90.0nF; (6)Collector-emitter cut-off current (VCE=1200 V, VGE=0V, Tvj=25°C): 5.0 mA.

Diagrams

FZ1200R12KL4C dimension figure

Image Part No Mfg Description Data Sheet Download Pricing
(USD)		 Quantity
FZ1200R12KL4C
FZ1200R12KL4C
Infineon Technologies
IGBT Modules 1200V 1200A SINGLE
Data Sheet
0-1: $588.01
1-3: $532.53
3-5: $477.06
5-10: $443.78
