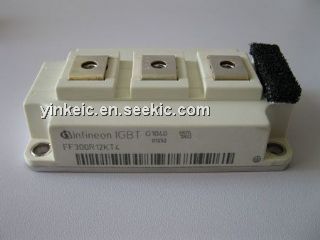

Product Summary

The FF300R12KT4 is a 62mm C-series module with fast trench/fieldstop IGBT4 and optimized EmCon Diode.

Parametrics

FF300R12KT4 absolute maximum ratings: (1)Collector-emitter Voltage(Tvj=25℃): 1200V ; (2)DC-collector current: Tc=80℃, Tvj=150℃, Ic nom=300A; Tc=25℃, Tvj=150℃, Ic nom=450A; (3)Repetitive Reak Current(tp=1ms): 600A; (4)Total Power Dissipation(Tc=25℃, Tvj=150℃): 1600W ; (5)Gate-emitter Peak Voltage: +/-20V.

Features

FF300R12KT4 features: (1)Collector-emitter saturation voltage(IC=300A, VGE=15V, Tvj=25℃): 1.75-2.15V; (2)Gate threshold voltage(IC=11.5mA, VCE=VGE, Tvj=25℃): 5.2-6.4V; (3)Gate charge(VGE=-15V...+15V): 2.40μC; (4)Internal gate resistor(Tvj=25℃): 2.5Ω; (5)Input capacitance(f=1MHz, Tvj=25°C, VCE=25V, VGE=0V): 19.0nF; (6)Collector-emitter cut-off current(VCE=1200 V, VGE=0V, Tvj=25°C): 5.0 mA.

Diagrams

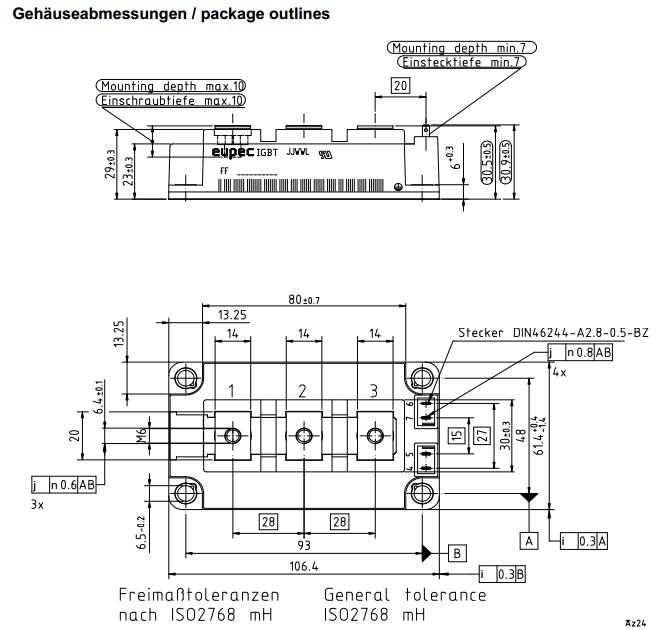

FF300R12KT4 dimension figure

Image Part No Mfg Description Data Sheet Download Pricing
(USD)
Quantity
FF300R12KT4
FF300R12KT4

Infineon Technologies

IGBT Modules IGBT 1200V 300A

Data Sheet
