Product Summary

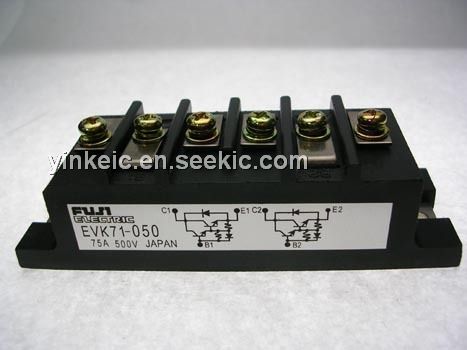

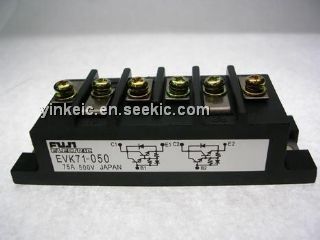

The EVK71-050 is a FUJI POWER TRANSISTOR MODULE. The applications of the EVK71-050 are Power Switching, AC Motor Controls, DC Motor Controls, Uninterruptible Power Supply.

Parametrics

EVK71-050 absolute maximum ratings: (1)VCBO: 600V; (2)VCEO: 600V; (3)VCEO(SUS): 450V; (4)VEBO: 6V; (5)IC: 75A; (6)ICP: 150A; (7)IB: 4.5A; (8)IBP: 9A; (9)PC: 350W; (10)Junction temperature Tj: +150℃; (11)Storage temperature TSTG: -40℃ to +125℃; (12)Weight: 235g.

Features

EVK71-050 features: (1) Including Free Wheeling Diode; (2)High D.C. Current Grain; (3)Insulated Type.

Diagrams

EVK71-050 dimension figure
