Product Summary

The EVF31T-050A is a FUJI POWER TRANSISTOR MODULE. The applications of the EVF31T-050A are Uninterruptible Power Supply, D.C Motor Controls.

Parametrics

EVF31T-050A absolute maximum ratings: (1)VCBO: 600V; (2)VCEO: 600V; (3)VCEO(SUS): 450V; (4)VEBO: 6V; (5)IC: 15A; (6)ICP: 30A; (7)IB: 1A; (8)IBP: 2.5A; (9)PC: 100W; (10)Junction temperature Tj: +150℃; (11)Storage temperature TSTG: -40℃ to +125℃; (12)Weight: 180g.

Features

EVF31T-050A features: (1)High D.C. Current Grain; (2)Including Free Wheeling Diode; (3)Insulated Type.

Diagrams

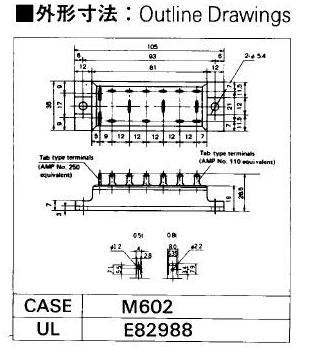

EVF31T-050A dimension figure
