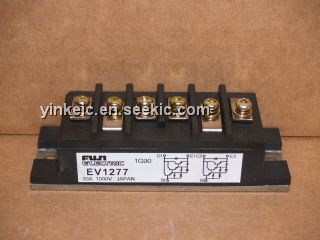

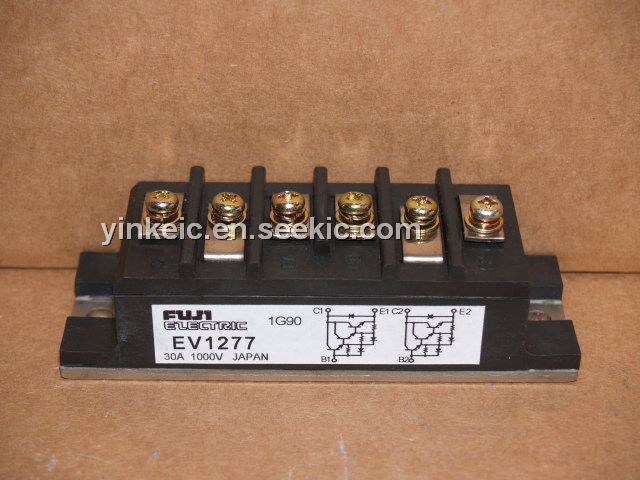

Product Summary

The EV1277 is a FUJI POWER TRANSISTOR MODULE. The applications of the EV1277 are High Power Switching, Uninterruptible Power Supply, DC Motor Controls, Welding Machines.

Parametrics

EV1277 absolute maximum ratings: (1)VCBO: 1000V; (2)VCEO: 1000V; (3)VCEO(SUS): 800V; (4)VEBO: 6V; (5)IC: 30A; (6)ICP: 60A; (7)IB: 3A; (8)IBP: 6A; (9)PC: 300W; (10)Junction temperature Tj: +150℃; (11)Storage temperature TSTG: -40℃ to +125℃; (12)Weight: 235g.

Features

EV1277 features: (1)High Voltage; (2)Including Free Wheeling Diode; (3)Insulated Type.

Diagrams

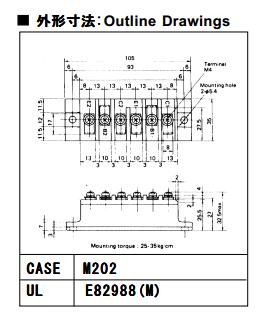

EV1277 dimension figure
