Product Summary

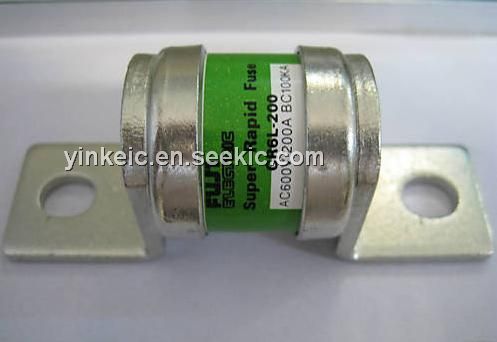

The CR6L-200 is a FUJI Super Rapid Fuse. It has been specially developed to provide protection for silicon diodes and thyristors and is suitable for inverters using semiconductors or transformersrectifiers. FUJI Super Rapid Fuse is designed with a very small total I2t value which gives them a high speed interrupting action in the face of abnormal currents.
Parametrics
CR6L-200 absolute maximum ratings: (1)Rated Voltage: 600VAC; (2)Peak arc voltage: Max.1200V; (3)Rated Current: 200A; (4)Max.interrupting I2t: 30000 A2×sec; (5)Watt loss: 34.0W.
Features
CR6L-200 features: (1)The total clearing I2t is small and the semiconductor circuit is completely protected; (2)Since the peak arc voltage at the time of interruption is low damage to other equipment does not occur; (3)High interrupting capacity of 200kA at 1000V AC; (4)The CS type is provided with a blown fuse indicator. An alarm contact block (1NO or 1NC) can also be attached.

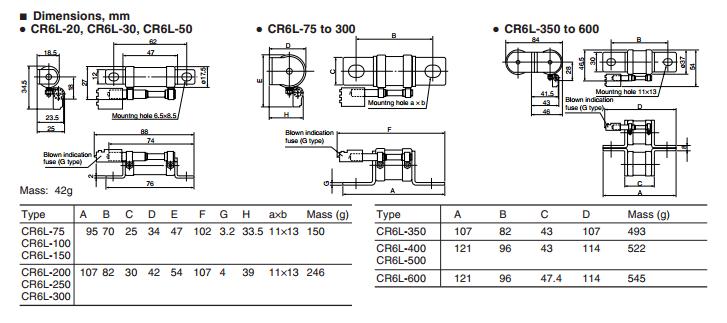

Diagrams
