Product Summary

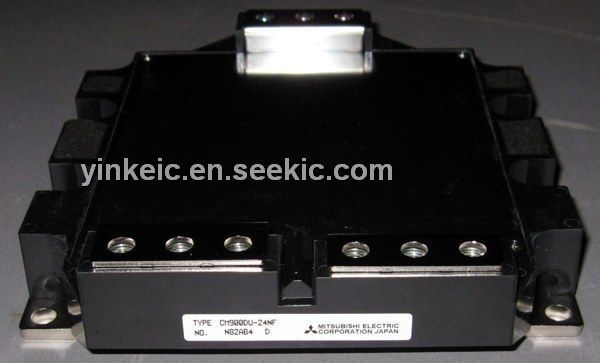

The CM900DU-24NF is a Mitsubishi IGBT Module. The applications of the CM900DU-24NF are UPS & General purpose inverters, etc.

Parametrics

CM900DU-24NF absolute maximum ratings: (1)Collector-emitter voltage VCES: 1200V; (2)Gate-emitter voltage VGES: ±20V; (3)Collector Current IC(TC = 25℃): 900A; (4)Emitter Current IE: 900A; (5)Maximum collector dissipation PC: 2550W; (6)Junction temperature Tj: -40℃ to +150℃; (7)Storage temperature TSTG: -40℃ to +125℃; (8)Isolation voltage Viso: 2500V; (9)Weight: 1400g.

Features

CM900DU-24NF features:(1)IC: 900A; (2)VCES: 1200V; (3)Insulated Type; (4)2-elements in a pack.

Diagrams

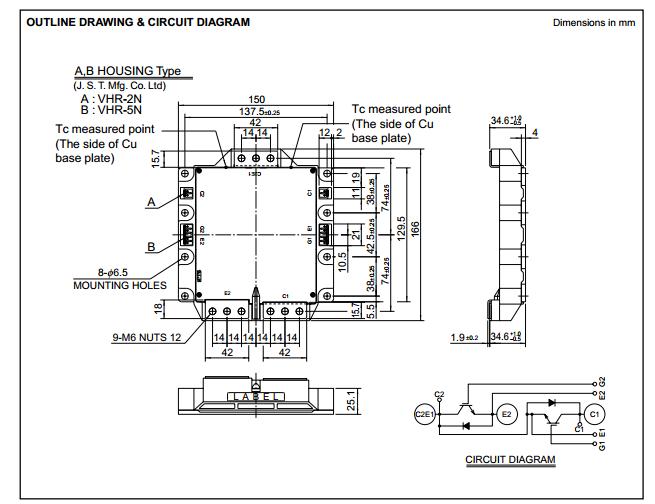

CM900DU-24NF dimension figure

Image Part No Mfg Description Data Sheet Download Pricing
(USD)		 Quantity

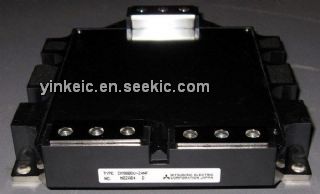

CM900DU-24NF
CM900DU-24NF

IGBT MOD DUAL 1200V 900A NF MEGA
Data Sheet
0-1: $402.89
1-10: $396.69
10-100: $381.20
100-250: $371.90
Image Part No Mfg Description Data Sheet Download Pricing
(USD)		 Quantity
CM900DU-24NF
CM900DU-24NF

IGBT MOD DUAL 1200V 900A NF MEGA
Data Sheet
0-1: $402.89
1-10: $396.69
10-100: $381.20
100-250: $371.90
