Product Summary

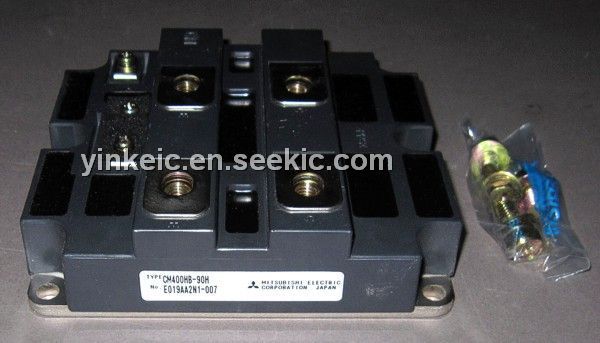

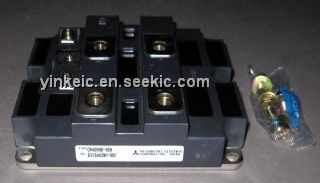

The CM400HB-90H is a MITSUBISHI HVIGBT MODULE. The applications of the CM400HB-90H are Inverters, Converters, DC choppers, Induction heating, DC to DC converters.

Parametrics

CM400HB-90H absolute maximum ratings: (1)Collector-emitter voltage VCES: 4500V; (2)Gate-emitter voltage VGES: ±20V; (3)Collector Current IC(TC = 25℃): 400A; (4)Emitter Current IE: 400A; (5)Maximum collector dissipation PC: 4300W; (6)Junction temperature Tj: -40℃ to +150℃; (7)Storage temperature TSTG: -40℃ to +125℃; (8)Isolation voltage Viso: 6000V; (9)Weight: 1500g.

Features

CM400HB-90H features: (1)IC: 400A; (2)VCES: 4500V; (3)Insulated Type; (4)1-element in a pack.

Diagrams

CM400HB-90H dimension figure
