Product Summary

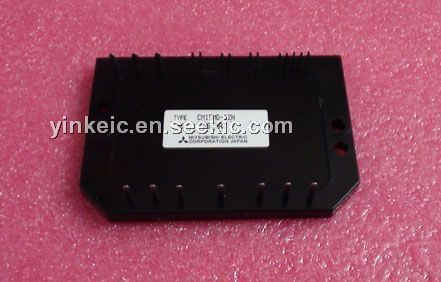

The CM30MD1-12H is a Medium-power Switching Power Supply. The applications of the CM30MD1-12H are AC & DC motor controls, General purpose inverters, Servo controls, NC, Robotics, UPS.
Parametrics
CM30MD1-12H absolute maximum ratings: (1)Collector-emitter voltage VCES: 600V; (2)Gate-emitter voltage VGES: ±20V; (3)Collector Current IC(TC=25℃): 30A; (4)Emitter Current IETC=25℃: 30A; (5)Maximum collector dissipation PC: 66W.
Features
CM30MD1-12H features: (1)IC: 30A; (2)VCES: 600V; (3)Insulated Type; (4)CIB Module: 3φ Inverter+3φ Converter; (5)UL Recognized.

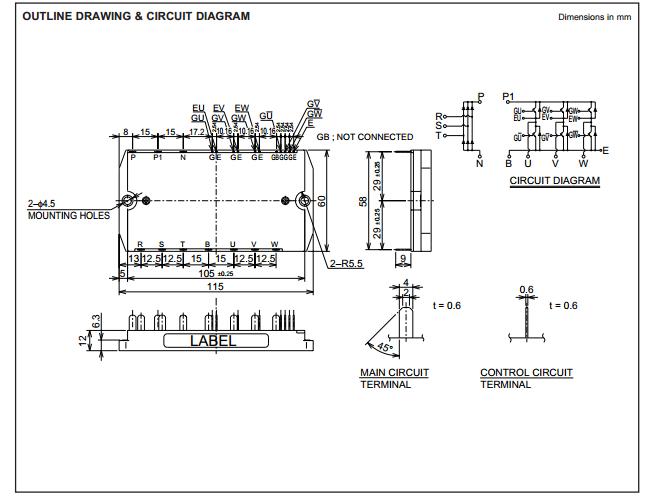

Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
 CM30MD1-12H |
Other |
|
Data Sheet |
Negotiable |
|
||||||
