Product Summary

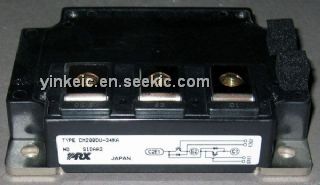

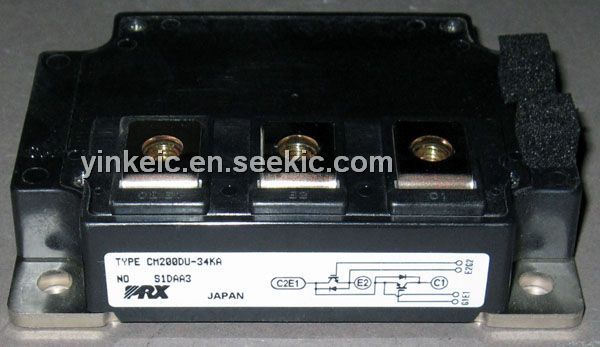

The CM200DU-34KA is a Mitsubishi IGBT Module. The applications of the CM200DU-34KA are General purpose inverters & Servo controls, etc.

Parametrics

CM200DU-34KA absolute maximum ratings: (1)Collector-emitter voltage VCES: 1700V; (2)Gate-emitter voltage VGES: ±20V; (3)Collector Current IC(TC = 25℃): 200A; (4)Emitter Current IE: 200A; (5)Maximum collector dissipation PC: 1100W; (6)Junction temperature Tj: -40℃ to +150℃; (7)Storage temperature TSTG: -40℃ to +125℃; (8)Isolation voltage Viso: 3500V; (9)Weight: 580g.

Features

CM200DU-34KA features:(1)IC: 200A; (2)VCES: 1700V; (3)Insulated Type; (4)2-elements in a pack.

Diagrams

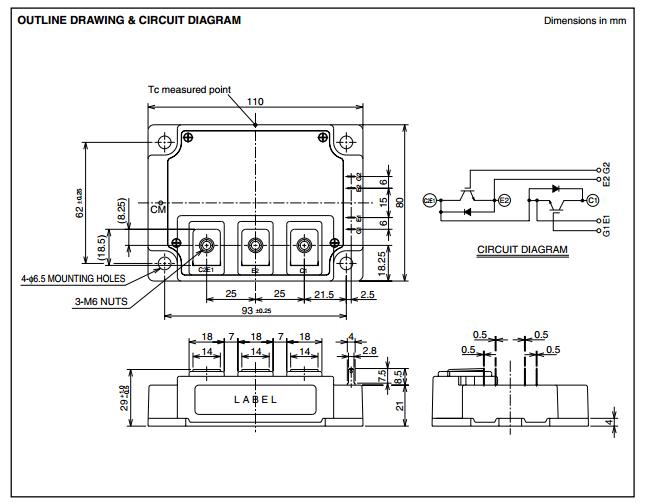

CM200DU-34KA dimension figure

Image Part No Mfg Description Data Sheet Download Pricing
(USD)		 Quantity
CM200DU-34KA
CM200DU-34KA

IGBT MOD DUAL 1700V 200A KA SER
Data Sheet
