Product Summary
The CM1200HA-24J is a Single IGBTMOD Module. It is designed for use in switching applications. Each module consists of one IGBT Transistor in a single configuration with a reverseconnected super-fast recovery free-wheel diode. All components and interconnects are isolated from the heat sinking baseplate, offering simplified system assembly and thermal management. The applications of the CM1200HA-24J are AC motor control, Motion/Servo Control, UPS, Welding Power Supplies and Laser Power Supplies.
Parametrics
CM1200HA-24J absolute maximum ratings: (1)Collector-emitter voltage VCES: 1200V; (2)Gate-emitter voltage VGES: ±20V; (3)Collector Current IC(TC = 25℃): 1200A; (4)Emitter Current IE: 1200A; (5)Maximum collector dissipation PC: 5800W; (6)Junction temperature Tj: -40℃ to +150℃; (7)Storage temperature TSTG: -40℃ to +125℃; (8)Isolation voltage Viso: 2500V; (9)Weight: 1600g.
Features
CM1200HA-24J features: (1)Low Drive Power; (2)Low VCE(sat); (3)Discrete Super-Fast Recovery Free-Wheel Diode; (4)Isolated Baseplate for Easy Heat Sinking.

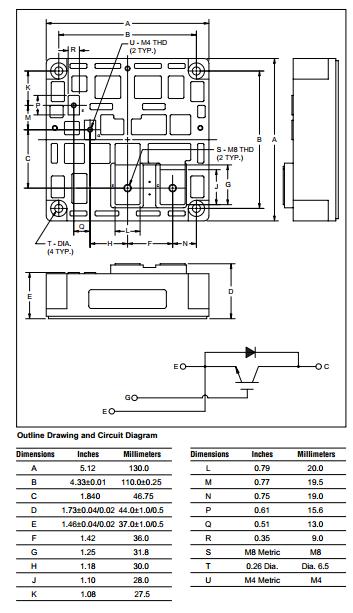

Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||
|---|---|---|---|---|---|---|---|---|---|---|
 |

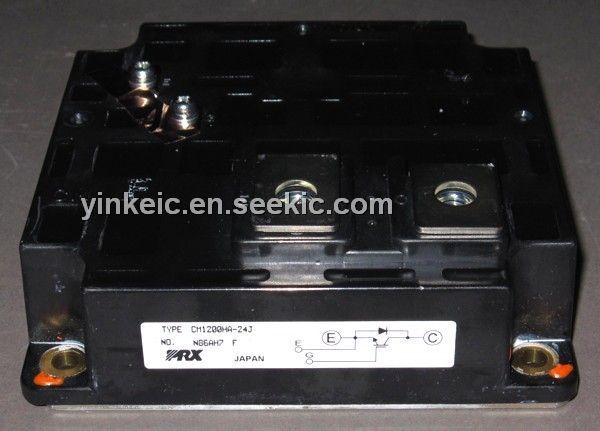

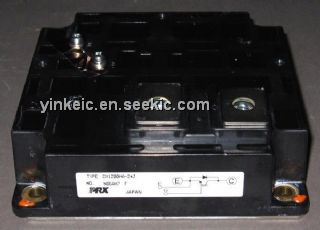

 CM1200HA-24J |
|
IGBT MOD SGL 1200V 1200A H SER |
Data Sheet |
Negotiable |
|
||||
