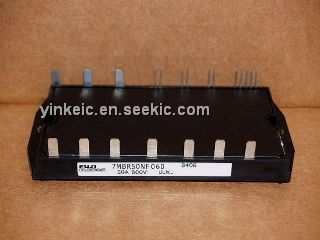

Product Summary

The 7MBR50NF060 is an IGBT MODULE. The applications of the 7MBR50NF060 are Inverter for Motoe Drive, AC and DC Servo Drive Amplifier, Uninterruptible Power Supply.

Parametrics

7MBR50NF060 absolute maximum ratings: (1)Collector-Emitter Voltage VCES: 600V; (2)Gate -Emitter Voltage VGES: ±20V; (3)Collector Current IC: 50A; (4)Collector Current ICP: 100A; (5)Collector Dissipation PC (1 device): 200W; (6)Isolation Voltage VISO (A.C. 1min.): 2500 V; (7)Junction Temperature Tj: 150℃; (8)Storage temperature TSTG: -40℃ to +125℃.

Features

7MBR50NF060 features: (1)High Speed Switching; (2)Voltage Drive; (3)Low Inductance Module Structure; (4)Converter Diode Bridge Dynamic Brake Circuit.

Diagrams

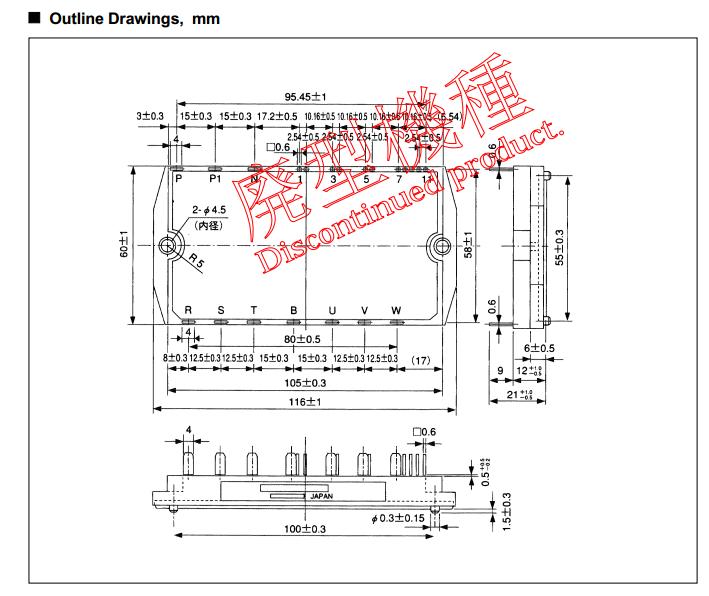

7MBR50NF060 dimension figure
