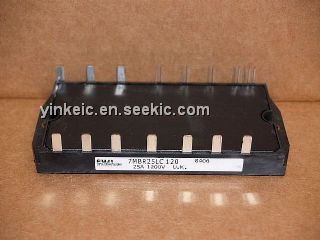

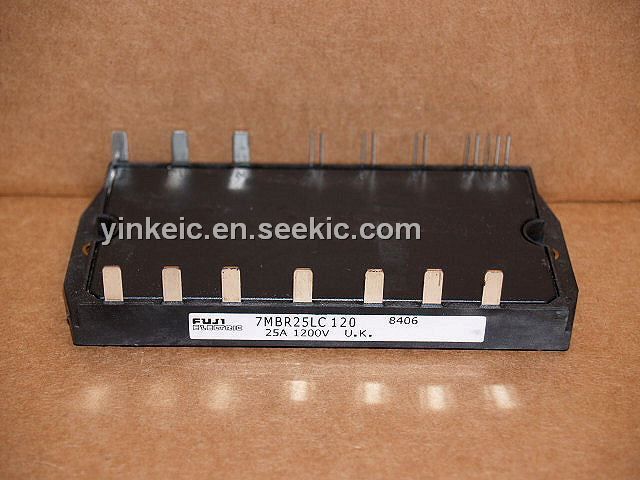

The 7MBR25LC120 is a Fuji Inverter Module.
Parametrics
7MBR25LC120absolute maximum ratings: (1)Collector-Emitter Voltage VCES: 1200V; (2)Gate -Emitter Voltage VGES: ±20V; (3)Collector Current IC: 25A; (4)Collector Current ICP: 50A; (5)Collector Dissipation PC (1 device): 150W; (6)Isolation Voltage VISO (A.C. 1min.): 2500 V; (7)Junction Temperature Tj: 150℃; (8)Storage temperature TSTG: -30℃ to +125℃.
Features
7MBR25LC120 features: (1)Zero gate voltage Collector current ICES (VGE=0V, VCE=1200V): 1.0 mA; (2)Gate-Emitter leakage current IGES (VCE=0V, VCE=±20V): 100 nA; (3)Gate-Emitter threshold voltage VGE(th) (VCE=20V, IC=25mA): 3.0V to 6.0V; (4)Input capacitance Cies (GE=0V, VCE=10V, f=1MHz): 4500 pF; (5)Reverse recovery time trr (IF=25A): 350 ns.

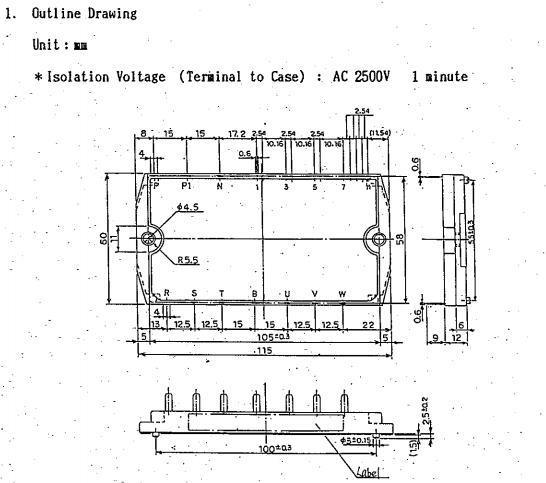

Diagrams
