Product Summary

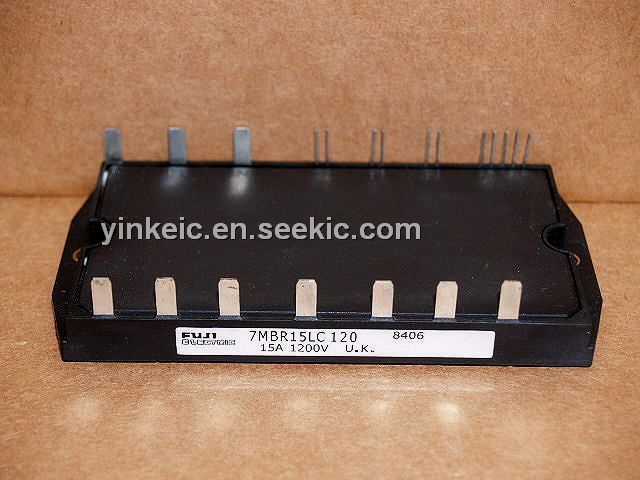

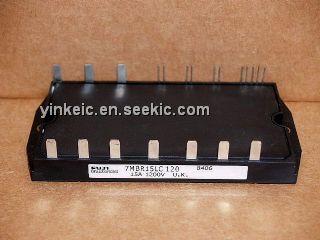

The 7MBR15LC120 is an IGBT MODULE. It is a PIM/Built-in converter with thyristor and brake. The applications of the 7MBR15LC120 are Inverter for Motoe Drive, AC and DC Servo Drive Amplifier, Uninterruptible Power Supply.

Parametrics

7MBR15LC120 absolute maximum ratings: (1)Collector-Emitter Voltage VCES: 1200V; (2)Gate -Emitter Voltage VGES: ±20V; (3)Collector Current IC: 15A; (4)Collector Current ICP: 30A; (5)Collector Dissipation PC (1 device): 110W; (6)Isolation Voltage VISO (A.C. 1min.): 2500 V; (7)Junction Temperature Tj: 150℃; (8)Storage temperature TSTG: -40℃ to +125℃.

Features

7MBR15LC120 features: (1)Low VCE(sat); (2)Compact Package; (3)P.C. Board Mount Module; (4)Converter Diode Bridge Dynamic Brake Circuit

Diagrams

7MBR15LC120 dimension figure
