Product Summary

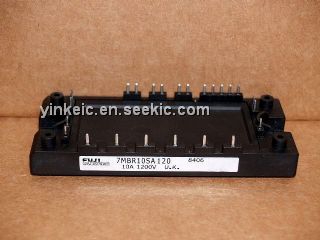

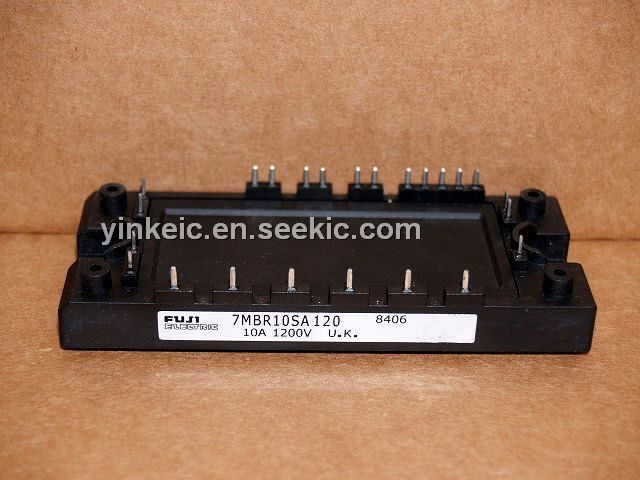

The 7MBR10SA120 is an IGBT MODULE. The applications of the 7MBR10SA120 are Inverter for Motoe Drive, AC and DC Servo Drive Amplifier, Uninterruptible Power Supply.
Parametrics
7MBR10SA120 absolute maximum ratings: (1)Collector-Emitter Voltage VCES: 1200V; (2)Gate -Emitter Voltage VGES: ±20V; (3)Collector Current IC (Tc=25/80℃): 15/10A; (4)Collector Current ICP(Tc=25/80℃): 30/20A; (5)Collector Dissipation PC (1 device): 75W; (6)Isolation Voltage VISO (A.C. 1min.): 2500 V; (7)Junction Temperature Tj: 150℃; (8)Storage temperature TSTG: -40℃ to +125℃.
Features
7MBR10SA120 features: (1)Low VCE(sat); (2)Compact package; (3)P.C. board mount; (4)Converter diode bridge, Dynamic brake circuit.

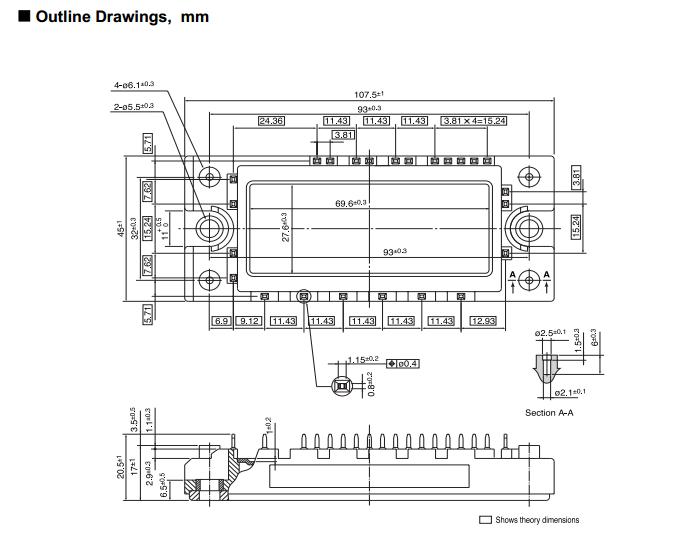

Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||
|---|---|---|---|---|---|---|---|---|---|---|
 |
 7MBR10SA120 |
Other |
|
Data Sheet |
Negotiable |
|
||||
