Product Summary

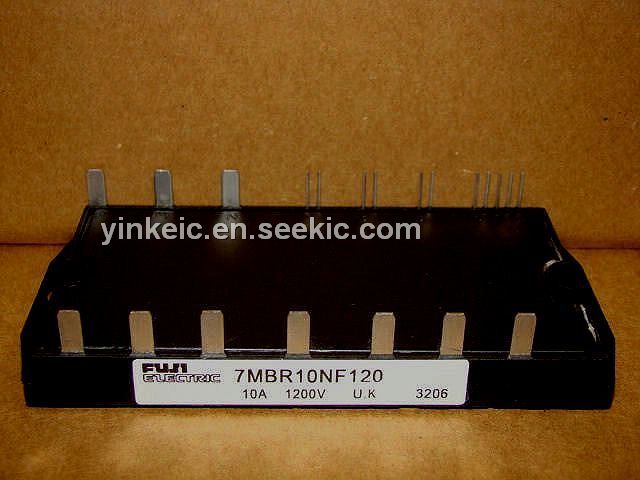

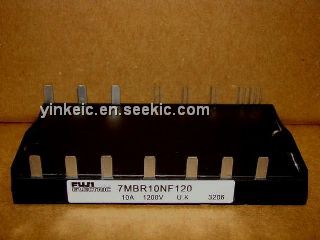

The 7MBR10NF120 is an IGBT MODULE. The applications of the 7MBR10NF120 are Inverter for Motoe Drive, AC and DC Servo Drive Amplifier, Uninterruptible Power Supply.

Parametrics

7MBR10NF120 absolute maximum ratings: (1)Collector-Emitter Voltage VCES: 1200V; (2)Gate -Emitter Voltage VGES: ±20V; (3)Collector Current IC: 10A; (4)Collector Current ICP: 20A; (5)Collector Dissipation PC (1 device): 60W; (6)Isolation Voltage VISO (A.C. 1min.): 2500 V; (7)Junction Temperature Tj: 150℃; (8)Storage temperature TSTG: -40℃ to +125℃.

Features

7MBR10NF120 features: (1)High Speed Switching; (2)Voltage Drive; (3)Low Inductance Module Structure; (4)Converter Diode Bridge Dynamic Brake Circuit.

Diagrams

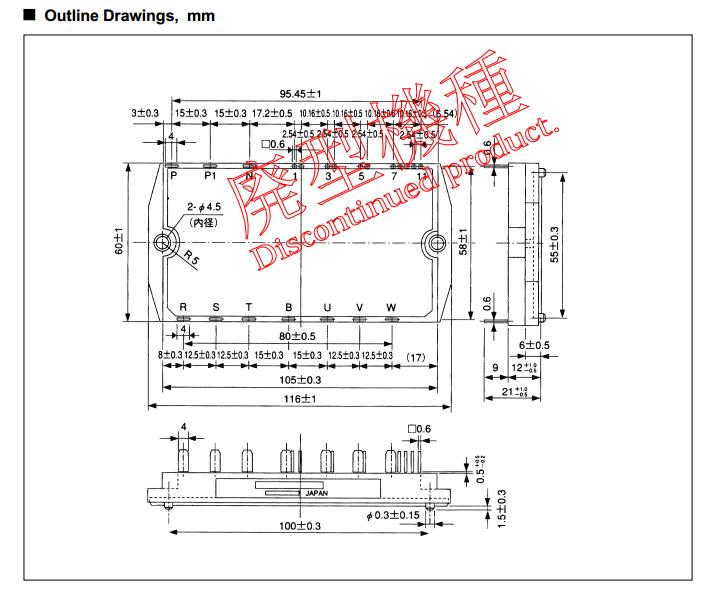

7MBR10NF120 dimension figure
