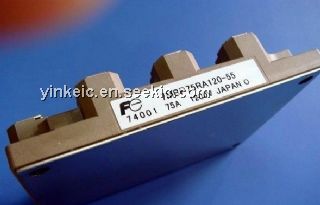

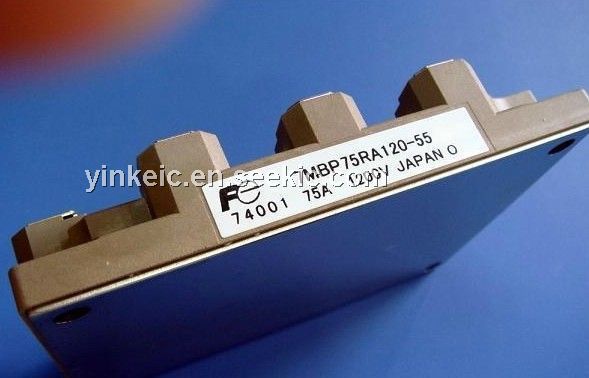

The 7MBP75RA120-55 is an IGBT-IPM.
Parametrics
7MBP75RA120-55 absolute maximum ratings: (1)DC bus voltage VDC: 0V to 900V; (2)DC bus voltage (surge) VDC(surge): 0V to 1000V; (3)DC bus voltage (short operating) VSC: 200V to 800V; (4)Collector-Emitter voltage VCES: 0V to 1200V; (5)DB Reverse voltage VR: 1200V; (6)Collector current IC: 75A; (7)Collector power dissipation PC: 500W; (8)Junction temperature: 150℃; (9)Input voltage of power supply for Pre-Driver VCC: 20V.
Features
7MBP75RA120-55 features: (1)Temperature protection provided by directly detecting the junction temperature of the IGBTs; (2)Low power loss and soft switching; (3)Compatible with existing IPM-N series packages; (4)High performance and high reliability IGBT with overheating protection; (5)Higher reliability because of a big decrease in number of parts in; (6)built-in control circuit.

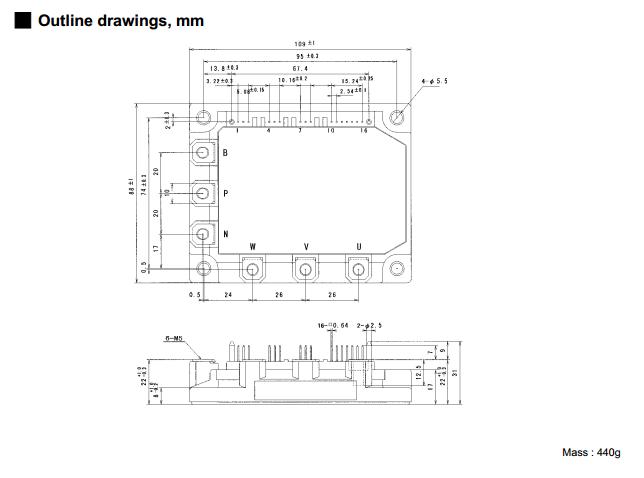

Diagrams
