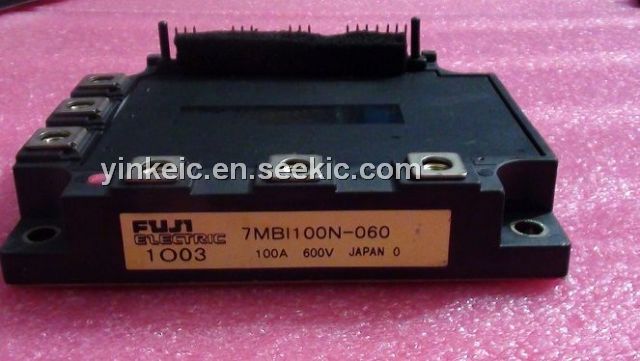

Product Summary

The 7MBI100N-060 is a Fuji IGBT Module.

Parametrics

7MBI100N-060 absolute maximum ratings: (1)Collector-Emitter Voltage VCES: 600V; (2)Gate -Emitter Voltage VGES: ±20V; (3)Collector Current IC (TC=25℃): 100A; (4)Collector Current ICP (1 ms): 200A; (5)Collector Dissipation PC (1 device): 400W; (6)Isolation Voltage VISO (A.C. 1min.): 2500 V; (7)Junction Temperature Tj: 150℃; (8)Storage temperature TSTG: -40℃ to +125℃.

Features

7MBI100N-060 features: (1)Including Brake Chopper; (2)Square RBSOA; (3)Low Saturation Voltage; (4)Overcurrent Limiting Function( ~ 3 Times Rated Current ).

Diagrams

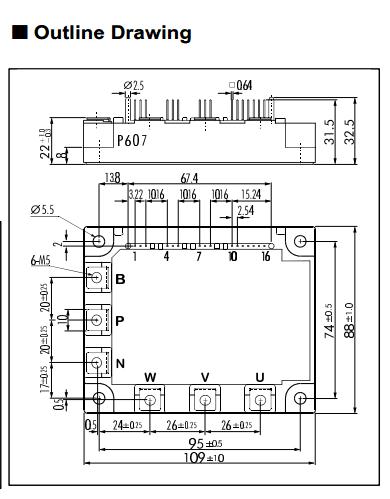

7MBI100N-060 dimension figure
