Product Summary

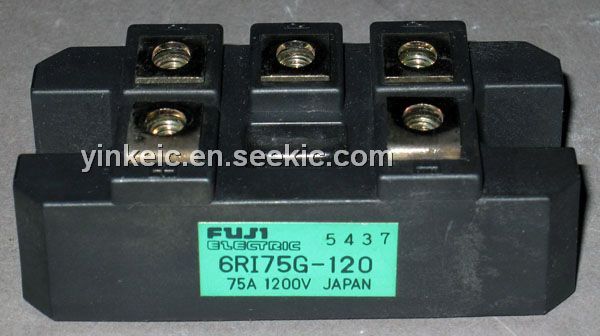

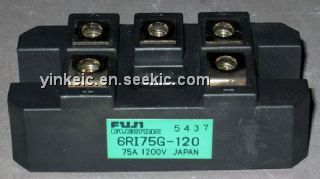

The 6RI75G-120 is a Fuji POWER DIODE MODULE. The applications of the 6RI75G-120 are Inverters, Battery Chargers, DC Motors, General purpose DC power supplies.

Parametrics

6RI75G-120 absolute maximum ratings: (1)Repetitive peak reverse voltage VRRM: 1200V; (2)Non-repetitive peak reverse voltage VRSM: 1320V; (3)Average current IO (50/60Hz Sinewawe, Tc=93℃): 75A; (4)Surge current IFSM (Rated load conditions): 1000A; (5)I2t (Rated load conditions): 4000A2t; (6)Junction temperature Tj: -40℃ to +150℃; (7)Storage temperature TSTG: -40℃ to +125℃; (8)Tightening torque (Mounting screw: M5): 2.5 to 3.0 N.m.

Features

6RI75G-120 features: (1)Glass Passivation Chip; (2)Easy Connection; (3)Insulated Type.

Diagrams

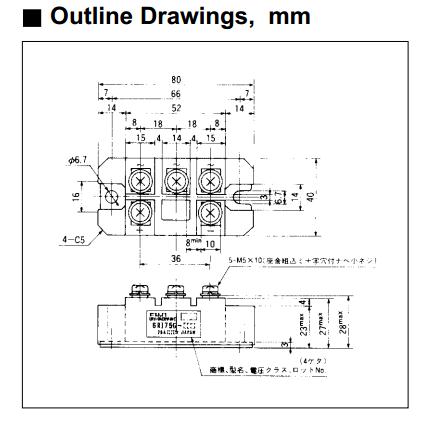

6RI75G-120 dimension figure
