Product Summary

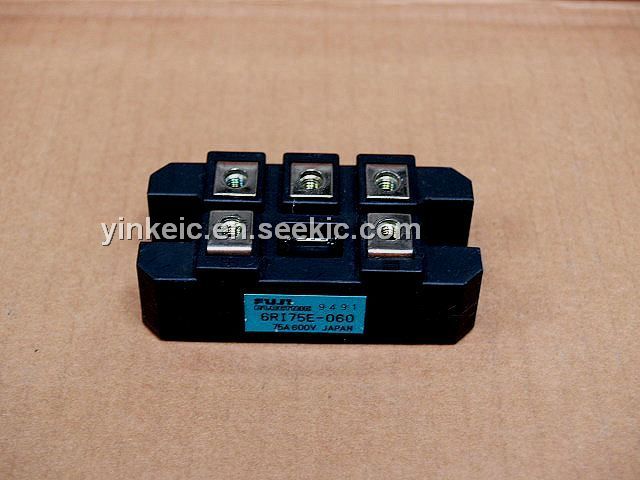

The 6RI75E-060 is a Fuji POWER DIODE MODULE. The applications of the 6RI75E-060 are Inverters, Battery Chargers, DC Motors, General purpose DC power supplies.

Parametrics

6RI75E-060 absolute maximum ratings: (1)Repetitive peak reverse voltage VRRM: 600V; (2)Non-repetitive peak reverse voltage VRSM: 660V; (3)Average current IO (50/60Hz Sinewawe, Tc=101℃): 75A; (4)Surge current IFSM (From rated load, Sine wave 10ms): 1000A; (5)I2t (From rated load): 4000A2t; (6)Junction temperature Tj: -40℃ to +150℃; (7)Storage temperature TSTG: -40℃ to +125℃; (8)Tightening torque (Mounting screw: M5): 2.5 to 3.0 N.m.

Features

6RI75E-060 features: (1)Glass Passivation Chip; (2)Easy Connection; (3)Insulated Type.

Diagrams

6RI75E-060 dimension figure
