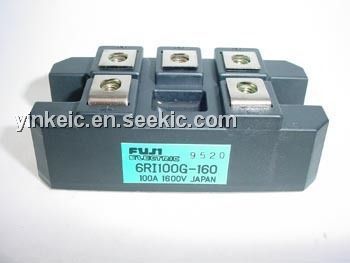

Product Summary

The 6RI100G-160 is a Fuji POWER DIODE MODULE. The applications of the 6RI100G-160 are Inverters for AC motors, Power supply units for DC motors, DC power supply units for battery chargers, General purpose DC power supply units.

Parametrics

6RI100G-160 absolute maximum ratings: (1)Repetitive peak reverse voltage VRRM: 1600V; (2)Non-repetitive peak reverse voltage VRSM: 1760V; (3)Average current IO (50/60Hz Sinewawe, Tc=97℃): 100A; (4)Surge current IFSM (Rated load conditions): 1200A; (5)I2t (Rated load conditions): 6000A2t; (6)Junction temperature Tj: -40℃ to +150℃; (7)Storage temperature TSTG: -40℃ to +125℃; (8)Tightening torque (Mounting screw: M5): 25±5 kg.cm; (9)Net. Weight: 230g.

Features

6RI100G-160 features: (1)All the terminals and the mounting plate are electrically isolated. These modules can be installed in the same cooling fin as other modules, thus saving installation space-a cost-effective feature; (2)The diode chips are coated with a glass of zinc oxide, making them highly resistant to temperature and humidity variation; (3)6 diode chips are connected to the 3-phase bridge rectifying circuit inside the module-a cost-effective feature.

Diagrams

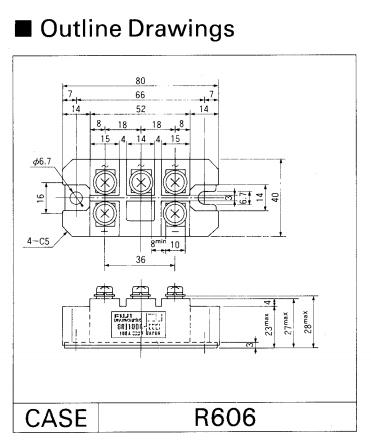

6RI100G-160 dimension figure
