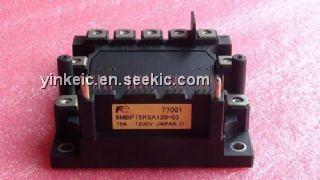

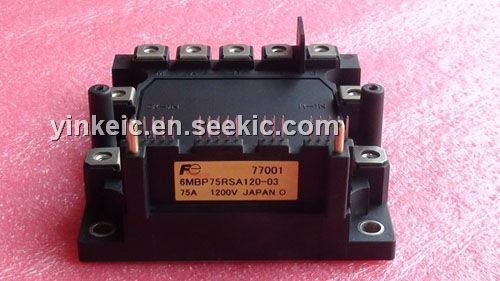

Product Summary

The 6MBP75RSA120 is an Intelligent Power Module.

Parametrics

6MBP75RSA120 absolute maximum ratings: (1)DC bus Voltage VDC: 0V to 900V; (2)DC bus Voltage(surge) VDC(surge): 0V to 1000V; (3)DC bus voltage (short operating) VSC: 200V to 800V; (4)Collector-Emitter Voltage VCES: 0V to 1200V; (5)collector current IC: 75A; (6)collector Power Dissipation Pc: 595W; (7)Junction temperature Tj: 150℃; (8)Input signal current: 1mA; (9)Storage temperature TSTG: -40℃ to +125℃.

Features

6MBP75RSA120 features: (1)Voltage of Power Supply for Driver VCC: 0V to 20V; (2)Isolation Voltage (A.C. 1min) Visol: 2500V; (3)Collector Current At Off Signal Input ICES: 1.0mA max. (VCE=1200V, Input Terminal Open); (4)Collector-Emitter Saturation Voltage VCE(sat): 2.6V max. (IC=75A)

Diagrams

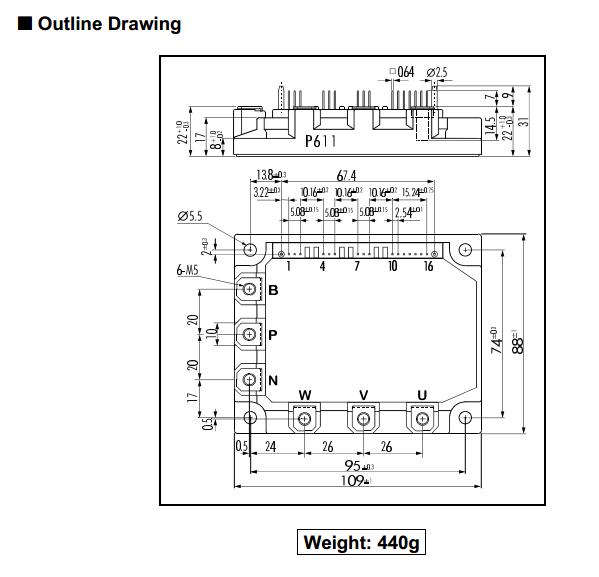

6MBP75RSA120 dimension figure
