Product Summary

The 6MBP50RTA060-01 is an IGBT-IPM.

Parametrics

6MBP50RTA060-01 absolute maximum ratings: (1)DC bus Voltage VDC: 0V to 450V; (2)DC bus Voltage(surge) VDC(surge): 0V to 500V; (3)DC bus voltage (short operating) VSC: 200V to 400V; (4)Collector-Emitter Voltage VCES: 0V to 600V; (5)collector current IC: 50A; (6)collector Power Dissipation Pc: 144W; (7)Junction temperature Tj: 150℃; (8)Input signal current: 3mA; (9)Storage temperature TSTG: -40℃ to +125℃.

Features

6MBP50RTA060-01 features: (1)Temperature protection provided by directly detecting the junction temperature of the IGBTs; (2)Low power loss and soft switching; (3)High performance and high reliability IGBT with overheating protection; (4)Higher reliability because of a big decrease in number of parts in built-in control circuit.

Diagrams

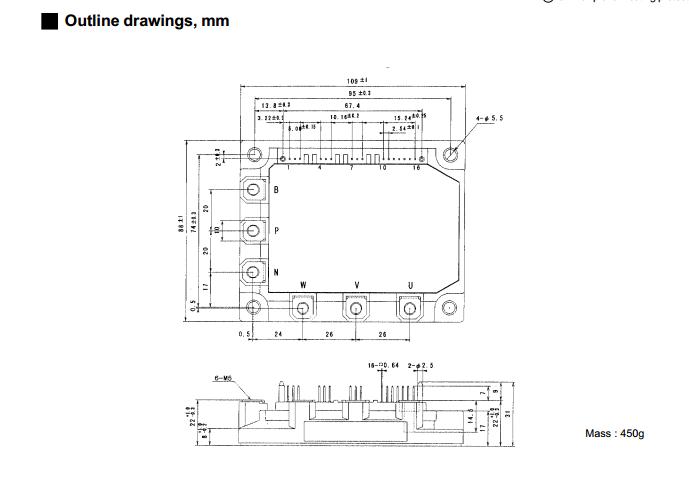

6MBP50RTA060-01 dimension figure
