Product Summary

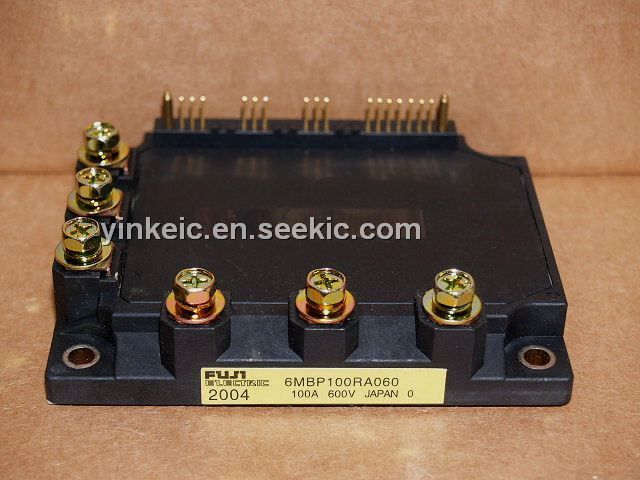

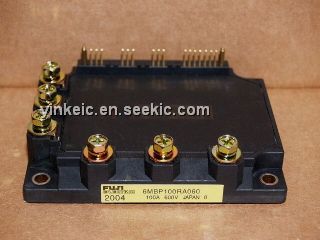

The 6MBP100RA060 is an IGBT-IPM. The applications of the AN8481SB are Inverter for Motor Drive, AC and DC Servo Drive Amplifier, Uninterruptible Power Supply and Industrial Machines, such as Welding Machines.

Parametrics

6MBP100RA060 absolute maximum ratings: (1)DC bus Voltage VDC: 0V to 450V; (2)DC bus Voltage(surge) VDC(surge): 0V to 500V; (3)DC bus voltage (short operating) VSC: 200V to 400V; (4)Collector-Emitter Voltage VCES: 0V to 600V; (5)collector current IC: 100A; (6)collector Power Dissipation Pc: 400W; (7)Junction temperature Tj: 150℃; (8)Input signal current: 1mA; (9)Storage temperature TSTG: -40℃ to +125℃.

Features

6MBP100RA060 features: (1)Low power loss and soft switching; (2)Compatible with existing IPM-N series packages; (3)High performance and high reliability IGBT with overheating protection; (4)Higher reliability because of a big decrease in number of parts in built-in control circuit.

Diagrams

6MBP100RA060 block diagram
