Product Summary

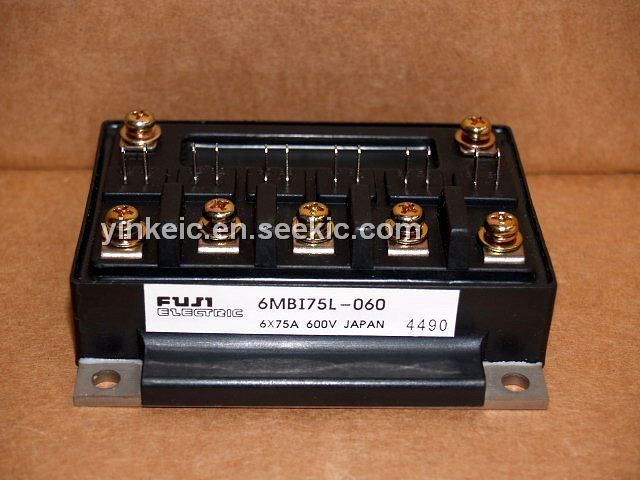

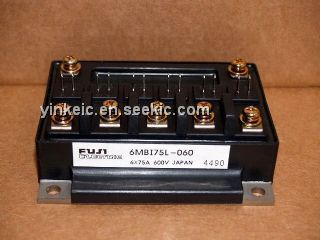

The 6MBI75L-060 is an IGBT Module. The applications of the 6MBI75L-060 are Inverter for Motor Drive, AC and DC Servo Drive Amplifier, Uninterruptible Power Supply and Industrial Machines, such as Welding Machines.

Parametrics

6MBI75L-060 absolute maximum ratings: (1)Collector-Emitter Voltage VCES: 600V; (2)Gate-Emitter Voltage VGES: ±20V; (3)collector current IC: 75A; (4) Max. Power Dissipation Pc: 325W ; (5) Operating ambient temperature Tj: +150℃; (6)Storage temperature TSTG: -40℃ to +125℃; (8)Net. Weight: 510g; (9)Isolation Voltage(AC.1min) Visol: 2500V.

Features

6MBI75L-060 features: (1)High Speed Switching; (2)Low Saturation Voltage; (3)Voltage Drive.

Diagrams

6MBI75L-060 dimension figure
