Product Summary

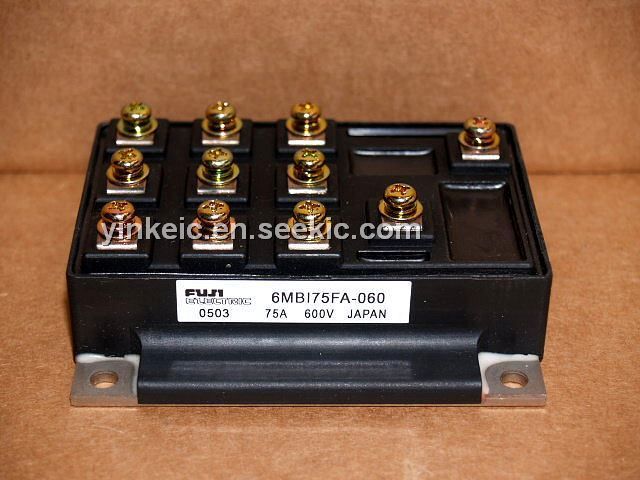

The 6MBI75FA-060 is an IGBT Module. The applications of the 6MBI75FA-060 are Inverter for Motor Drive, AC and DC Servo Drive Amplifier, Uninterruptible Power Supply and Industrial Machines, such as Welding Machines.

Parametrics

6MBI75FA-060 absolute maximum ratings: (1)Collector-Emitter Voltage VCES: 600V; (2)Gate-Emitter Voltage VGES: ±20V; (3)collector current IC: 75A; (4) Max. Power Dissipation Pc: 290W ; (5) Operating ambient temperature Tj: +150℃; (6)Storage temperature TSTG: -40℃ to +125℃; (8)Net. Weight: 510g; (9)Isolation Voltage(AC.1min) Visol: 2500V.

Features

6MBI75FA-060 features: (1)Low Saturation Voltage; (2)Voltage Drive; (3)Variety of Power Capacity Series.

Diagrams

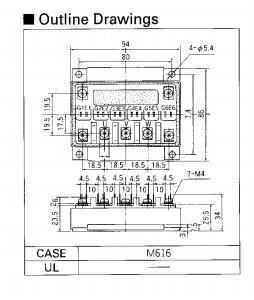

6MBI75FA-060 dimension figure
