Product Summary

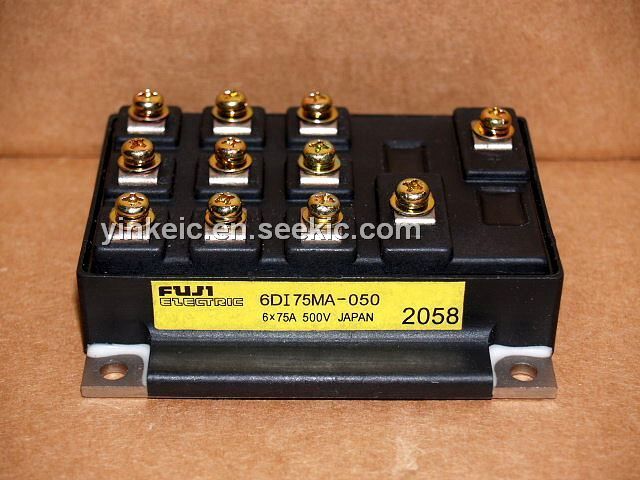

The 6DI75MA-050 is a Power Transistor Module. The applications of the 6DI75MA-050 are General Purpose Inverter, Uninterruptible Power Supply, Servo & Spindle Drive for NC Machine Tools, Robotics (Servo Drive for Robots), Switching Power Supplies for welding Machines.

Parametrics

6DI75MA-050 absolute maximum ratings: (1)VCBO: 600V; (2)VCEO: 600V; (3)VCEO(SUS): 450V; (4)VEBO: 10V; (5)IC: 75A; (6)ICP(1ms): 150A; (7)PC: 350W(one Tansistor), 2100W(six Tansistors); (8)Junction Temperature(Tj): +150℃; (9)Storage Temperature (Tstg): -40℃ to +125℃; (10)Weight: 450g; (11)Visol(AC. 1min): 2500V.

Features

6DI75MA-050 features: (1)High DC Current Grain; (2)High Speed Switching.

Diagrams

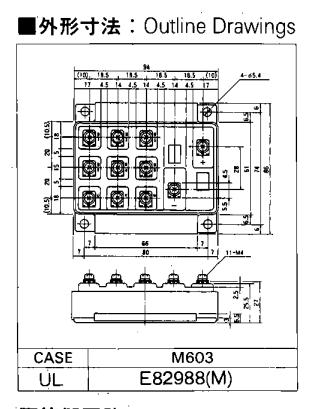

6DI75MA-050 dimension figure
