Product Summary

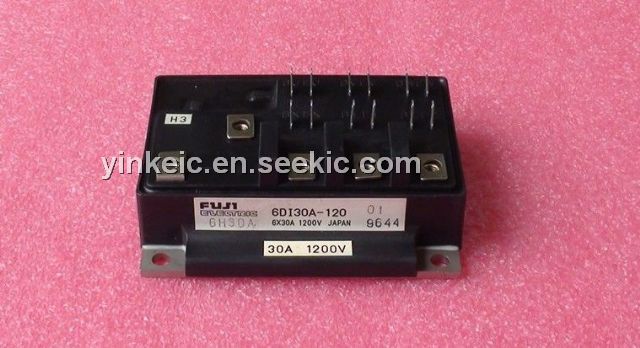

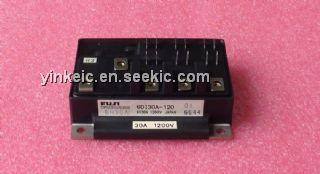

The 6di30a-120 is a power transistor module. Applications of the 6di30a-120 include: A.C motor controls and air conditioners.
Parametrics
6di30a-120 absolute maximum ratings: (1) VCBO: 1200V; (2) VCEO: 1200V; (3) VEBO: 10V; (4) IC: 30A; (5) ICP: 60A; (6) -IC: 30A; (7) IB: 3A; (8) IBP: 6A; (9) PC: 230W; (10) Tj: +150°C; (11) Tstg: -40 to +125°C; (12) Viso: 2500V (AC 1 min.) .
Features
6di30a-120 features: (1) VCBO: 1200V; (2) VCEO: 1200V; (3) VEBO: 10V; (4) IC: 30A; (5) ICP: 60A; (6) -IC: 30A; (7) IB: 3A; (8) IBP: 6A; (9) PC: 230W; (10) Tj: +150°C; (11) Tstg: -40 to +125°C; (12) Viso: 2500V (AC 1 min.) .

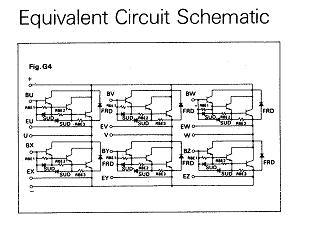

Diagrams
