Product Summary

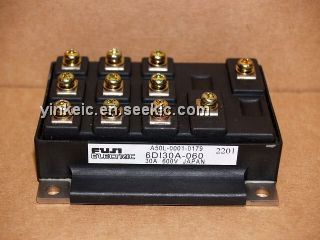

The 6DI30A-060 is a Power Transistor Module. The applications of the 6DI30A-060 are AC Motor Controls and Air Conditiners.

Parametrics

6DI30A-060 absolute maximum ratings: (1)VCBO: 600V; (2)VCEO: 600V; (3)VEBO: 10V; (4)IC: 30A; (5)ICP(1ms): 60A; (6)PC: 230W(one Tansistor), 1380W(six Tansistors); (7)Junction Temperature(Tj): +150℃; (8)Storage Temperature (Tstg): -40℃ to +125℃; (9)Weight: 450g; (10)Visol(AC. 1min): 2500V.

Features

6DI30A-060 features: (1)High Voltage; (2)Inculding Free Wheeling Diode; (3)Insulated Type.

Diagrams

HTRC11001T dimension figure
