Product Summary

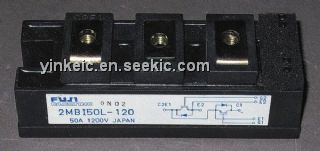

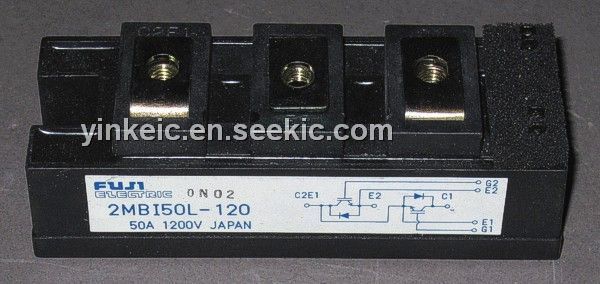

The 2MBI50L-120 is a Fuji IGBT Module. The applications of the 2MBI50L-120 are Inverter for Motor drive, AC and DC Servo drive amplifier, Uninterruptible power supply and Industrial machines, such as Welding machines.
Parametrics
2MBI50L-120 absolute maximum ratings: (1)Collector-Emitter Voltage VCES: 1200V; (2)Gate-Emitter Voltage VGES: ±20V; (3)collector current IC: 50A;(4) collector current ICP (1ms): 100A; (5)Collector Power Dissipation Pc: 400W ; (6)Operating ambient temperature Tj: +150℃; (7)Storage temperature TSTG: -40℃ to +125℃; (8) Isolation Voltage(AC.1min) Visol: 2500V; (9)Weight: 185g.
Features
2MBI50L-120 features: (1) High speed switching; (2) Low Saturation Voltage; (3)Voltage Drive.

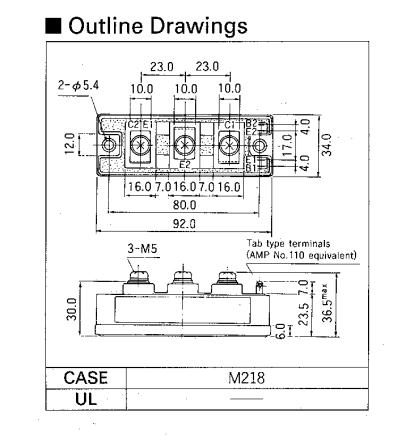

Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||
|---|---|---|---|---|---|---|---|---|---|---|
 |
 2MBI50L-120 |
Other |
|
Data Sheet |
Negotiable |
|
||||
