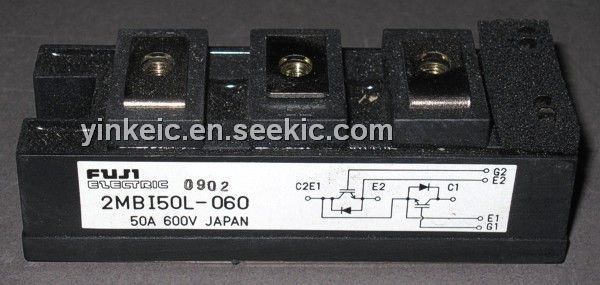

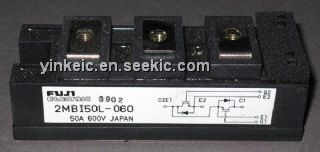

Product Summary

The 2MBI50L-060 is a Fuji IGBT Module. The applications of the 2MBI50L-060 are Inverter for Motor drive, AC and DC Servo drive amplifier, Uninterruptible power supply and Industrial machines, such as Welding machines.

Parametrics

2MBI50L-060 absolute maximum ratings: (1)Collector-Emitter Voltage VCES: 600V; (2)Gate-Emitter Voltage VGES: ±20V; (3)collector current IC: 50A;(4) collector current ICP (1ms): 100A; (5)Collector Power Dissipation Pc: 250W ; (6)Operating ambient temperature Tj: +150℃; (7)Storage temperature TSTG: -40℃ to +125℃; (8) Isolation Voltage(AC.1min) Visol: 2500V; (9)Weight: 185g.

Features

2MBI50L-060 features: (1) High speed switching; (2) Low Saturation Voltage; (3)Voltage Drive.

Diagrams

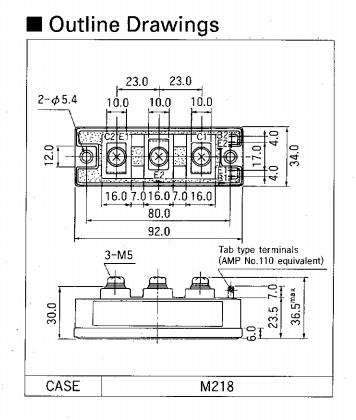

2MBI50L-060 dimension figure
