Product Summary

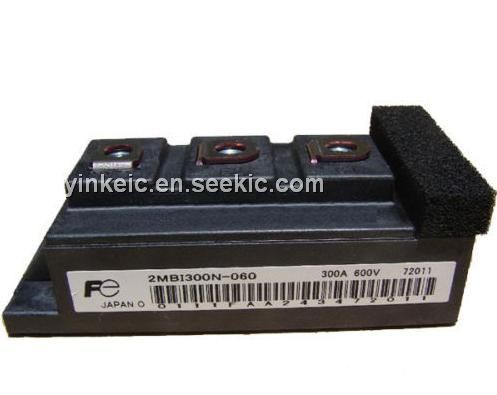

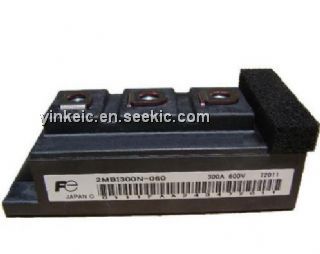

The 2MBI300N-060 is a Fuji IGBT Module. The applications of the 2MBI300N-060 are Inverter for Motor drive, AC and DC Servo drive amplifier, Uninterruptible power supply and Industrial machines, such as Welding machines.
Parametrics
2MBI300N-060 absolute maximum ratings: (1)Collector-Emitter Voltage VCES: 600V; (2)Gate-Emitter Voltage VGES: ±20V; (3)collector current IC: 300A;(4) collector current ICP (1ms): 600A; (5)Collector Power Dissipation Pc: 1100W ; (6)Operating ambient temperature Tj: +150℃; (7)Storage temperature TSTG: -40℃ to +125℃; (8) Isolation Voltage(AC.1min) Visol: 2500V.
Features
2MBI300N-060 features: (1)VCE(sat) classified for easy parallel connection; (2)High speed switching; (3)Voltage drive; (4)Low inductance module structure
Diagrams
