Product Summary
The 2mbi300lb-060 is an IGBT module (L series) . Applications of the 2mbi300lb-060 include: inverter for motor drive, AC and DC drive amplifier, uninterruptible power supply and industrial machines, such as machines.
Parametrics
2mbi300lb-060 absolute maximum ratings: (1) collector-emitter voltage VCES: 600V; (2) gate-emitter voltage VGES: ±20V; (3) collecter current IC: 300A (continuous) , IC pulse: 600A (1ms) , -IC: 300A (continuous) , -IC pulse: 600A (1ms) ; (4) max power dissipation PC: 1200W; (5) operating temperature Tj: +150°C; (6) storage temperature Tstg: -40 to +125°C; (7) Isoltation voltage Visol: 2500V (AC. 1 min) . voltage VCES: 600V; (2) gate-emitter voltage VGES: ±20V; (3) collecter current IC: 300A (continuous) , IC pulse: 600A (1ms) , -IC: 300A (continuous) , -IC pulse: 600A (1ms) ; (4) max power dissipation PC: 1200W; (5) operating temperature Tj: +150°C; (6) storage temperature Tstg: -40 to +125°C; (7) Isoltation voltage Visol: 2500V (AC. 1 min) .
Features
2mbi300lb-060 features: (1) high speed switching; (2) low saturation voltage; (3) voltage drive.

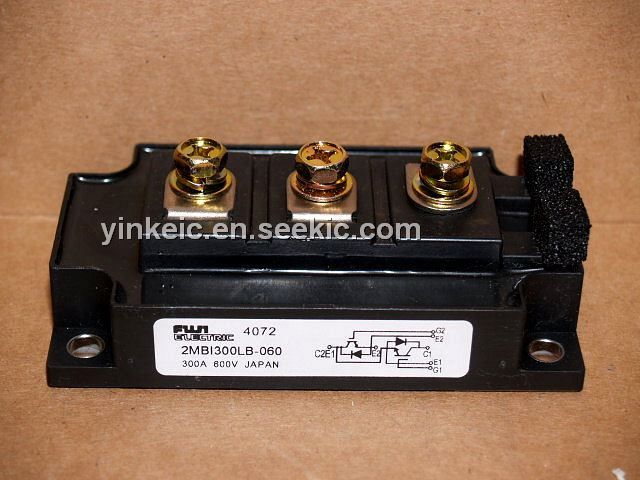

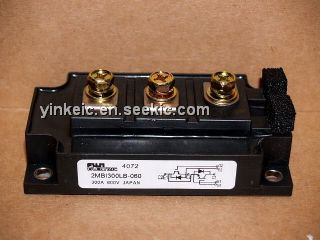

Diagrams
